KA-3003

KA-3003

TRIPLEXER 1800-2100/2300/2600

The Kaelus KA-3003 is a bi-directional triplexer, designed to combine or split 1800-2100, 2300 and 2600 bands. The KA-3003 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for 1800, 2100, 2300 and 2600 systems
  • Compact & lightweight
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Dual unit and quad unit versions available
  • Hard wired and DC autosense versions available
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name1800-210023002600
Passband1710 - 2170MHz2300 - 2400MHz2500-2690MHz
Insertion loss0.2dB typical, 0.3dB max0.2dB typical, 0.3dB max0.2dB typical, 0.35dB max
Return loss20dB typical, 18dB minimum
Maximum input power250W (average) *250W (average) *250W (average) *
Intermodulation products< -160dBc at 2 x 43dBm TX Carrier
Rejection50dB minimum in 2300 and 2600 band50dB minimum in 1800-2100 and 2600 band50dB minimum in 1800-2100 and 2300 band
(*) Limited to 500W (average) combined power at the common port.
electrical
Impedance50Ohms
dc / aisg
DC/AISG path is factory configurable, see ordering information
Passband0 – 3MHz
Insertion loss1dB maximum
Return loss12dB minimun
Input voltage range± 30V
DC current rating3A continuous
Compliance3GPP TS 25.461
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +70ºC | -40ºF to +158ºF
Ingress protectionIP67
Lightning protection5kA maximum (8/20us)
MTBF> 1,000,000 Hours
Compliance Operation: ETSI EN 300 019 class 4.1E
Storage: ETS 300 019-1-1 class 1.3E
Transport: ETS 300 019-1-2 class 2.3
RoHS
mechanical
FeatureDual Unit (6 in / 2 out)Quad Unit (12 in / 4 out)
Dimensions H x D x W150 x 95 x 190mm | 5.89 x 3.73 x 7.48in150 x 190 x 190mm | 5.89 x 7.48 x 7.48in
Weight4.7kg9.2kg
FinishPowder Coated, light grey, NCS 1502-R
Connectors4.3-10 (F) long neck
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
shipping information
FeatureDual Unit (6 in / 2 out)Quad Unit (12 in / 4 out)
Carton size300 x 267 x 200mm300 x 267 x 290mm
Gross weight (including packaging)5.3kg9.9kg
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
KA-3003-20326 in / 2 outFIXED DC
FACTORY CONFIGURABLE		4.3-10 (F)DC TO ALL
KA-3003-403212 in / 2 outFIXED DC
FACTORY CONFIGURABLE		4.3-10 (F)DC TO ALL
Note: DC autosense versions available, contact Kaelus for information

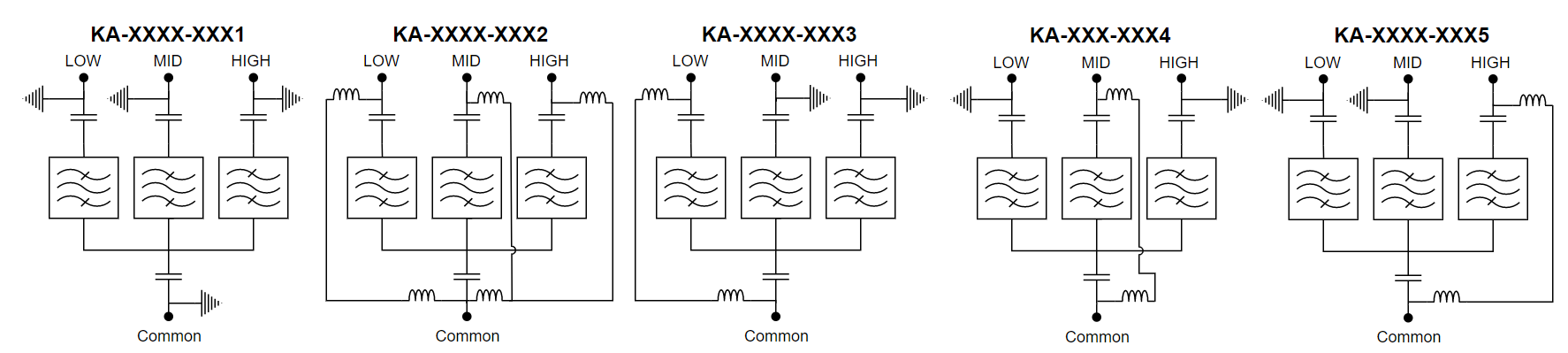

electrical block diagram
ELECTRICAL BLOCK DIAGRAM
KA-3003-XXXZ where Z denotes the DC path variant
  • LOW port is 1800-2100 band
  • MID port is 2300 band
  • HIGH port is 2600 band
    		•
    mechanical block diagram

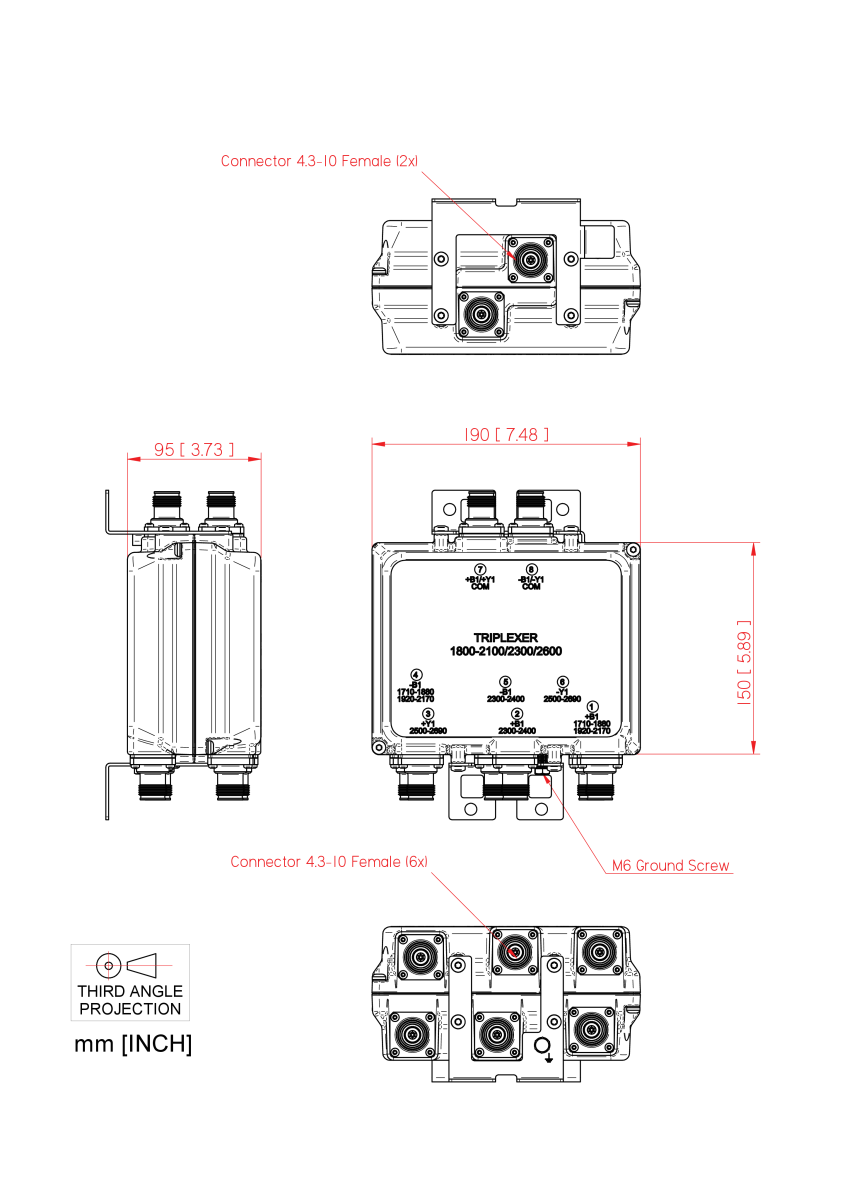

    MECHANICAL BLOCK DIAGRAM
    KA-3003-2032

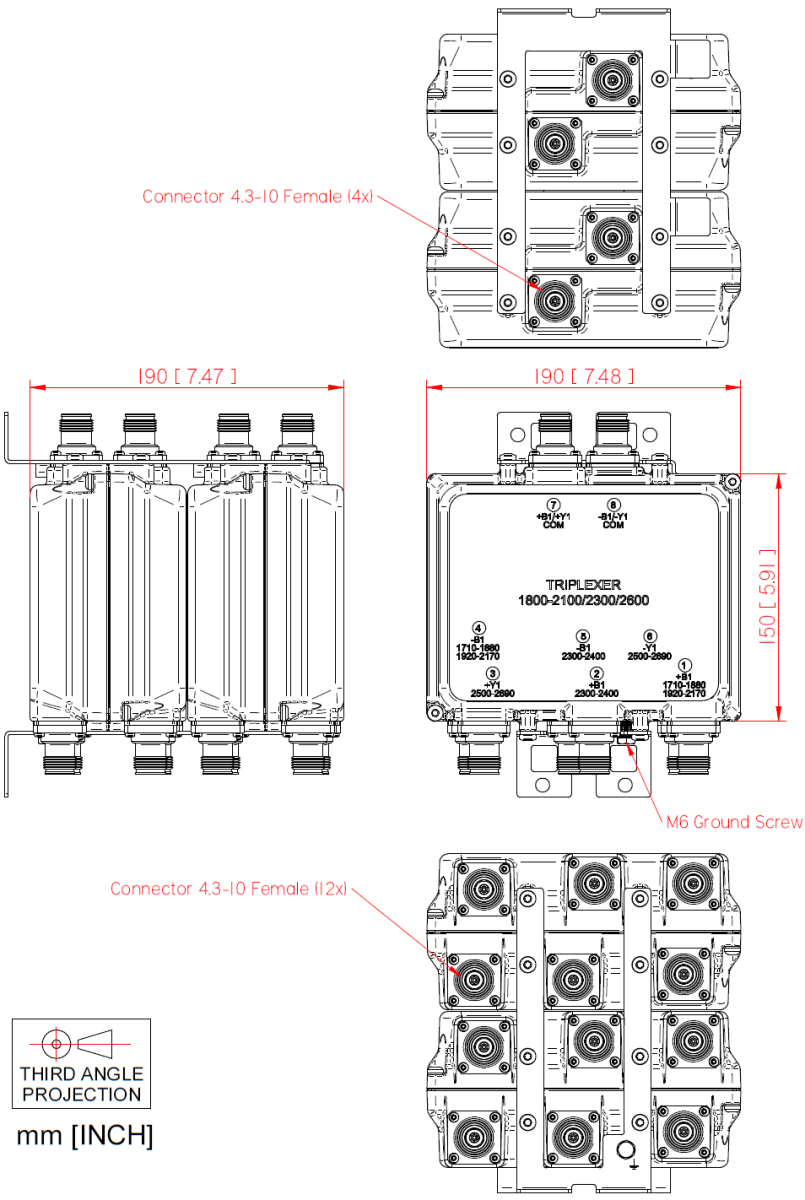

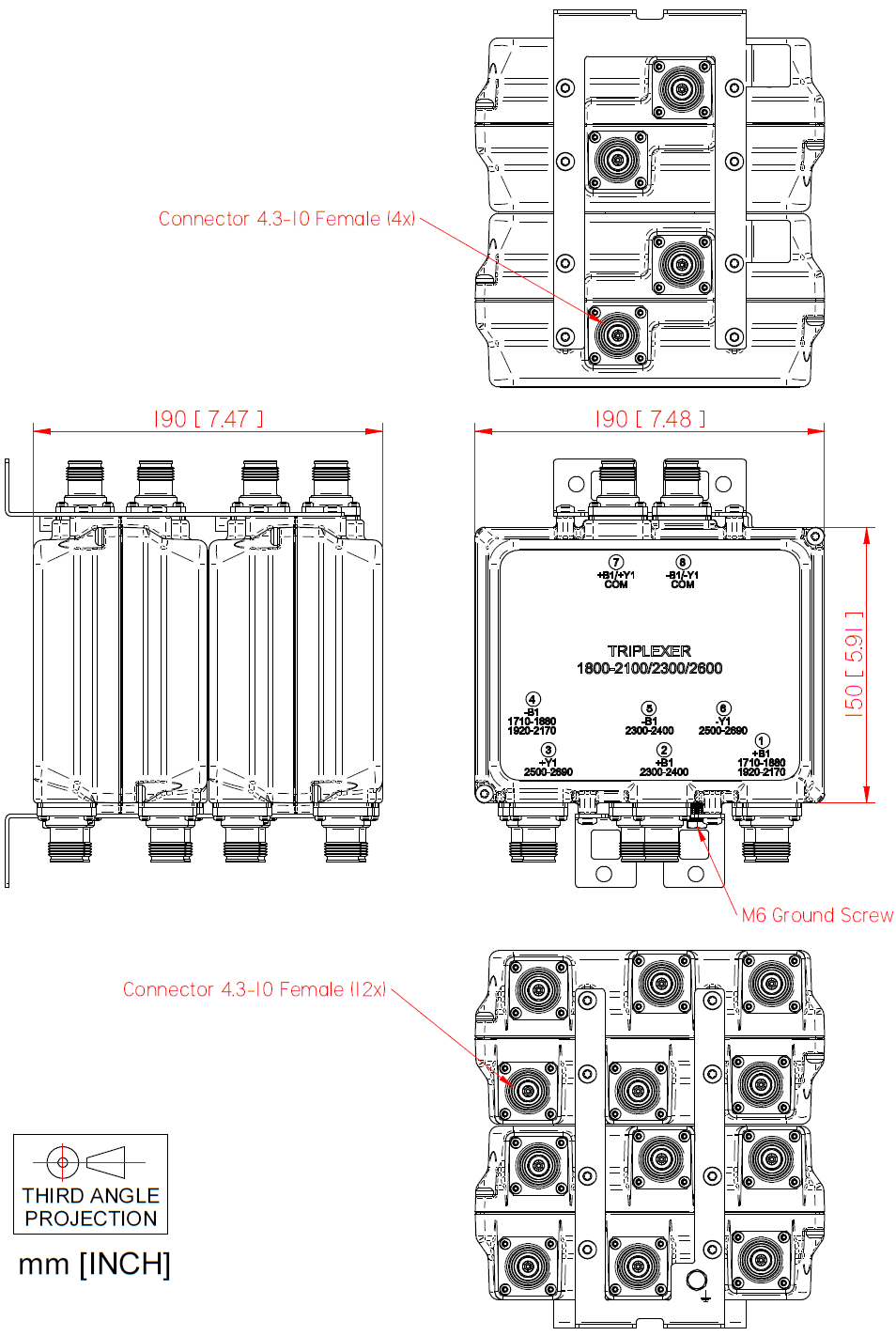

    MECHANICAL BLOCK DIAGRAM
    KA-3003-4032
