KA-3008

KA-3008

TRIPLEXER LB/PCS+AWS+WCS+BRS/C-BAND+LAA

The Kaelus KA-3008 is a bi-directional Triplexer, designed to combine or split Lowband, AWS, PCS and 2.6 GHz and 3.5GHz bands. The KA-3008 provides low insertion loss and high return loss with excellent passive inter-modulation performance in an extremely small and lightweight IP67 capable package

FEATURES

  • Enables antenna & coax sharing for Lowband, AWS, PCS and 2.6 GHz to C-band and LAA systems
  • Compact & lightweight - perfect for Small Cell applications
  • Low insertion loss & high return loss
  • Low passive IM performance
  • Single twin and dual twin models available
  • Hard Wired and DC Autosense versions available
  • Provisions for wall or mast mounting
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name 617-960MHz 1695-2690MHz 3300-5925MHz
Passband 617-960 MHz 1695-2690 MHz 3300-5925 MHz
Insertion loss <0.25dB typical, 0.3dB max <0.35dB typical, 0.4dB max <0.25dB typical, 0.3dB max
Return loss >20dB
Maximum input power 100W (average) / 1000W (PEP) 100W (average) / 1000W (PEP) 100W (average) / 1000W (PEP)
Intermodulation products <-160 dBc typ at 2 x +43dBm TX Carrier (IM7) <-160 dBc typ at 2 x +43dBm TX Carrier (IM3) <-145 dBc typ at 2 x +43dBm TX Carrier (IM3)
Rejection 40dB minimum
1695-2690 MHz
3300-5925 MHz		 40dB minimum
617-960 MHz
3300-5925 MHz		 40dB minimum
617-960 MHz
1695-2690 MHz
electrical
Impedance 50Ohms
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40°F to 149°F
Ingress protection IP67
Lightning protection +/-5kA 8/20 µs
MTBF > 1,000,000 Hours
Compliance ETSI 300 019 1-4 Class 4.1
ETSI 300 019-2-3 Class 3.2
dc / aisg
DC/AISG path is factory configurable, see ordering information
Passband 0 – 3MHz
Insertion loss 1dB maximum
Return loss 12dB minimum
Input voltage range ± 30V
DC current rating 3A continuous
Compliance 3GPP TS 37.461
mechanical
Dimensions H x D x W (single unit) 130 x 155 x 55mm | 5.1 x 6.1 x 2.2in
Dimensions H x D x W (twin unit) 130 x 155 x 110mm | 5.1 x 6.1 x 4.3in
Weight 3.7kg | 8.2lbs (Twin)
Finish Painted, NCS 1502-R
Connectors 4.3-10 Female
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
KA-3008-1031 3 in / 1 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) NO DC
KA-3008-1032 3 in / 1 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC TO ALL
KA-3008-1033 3 in / 1 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC LOW TO COMMON
KA-3008-1034 3 in / 1 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC MID TO COMMON
KA-3008-1035 3 in / 1 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC HIGH TO COMMON
KA-3008-2031 6 in / 2 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) NO DC
KA-3008-2032 6 in / 2 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC TO ALL
KA-3008-2033 6 in / 2 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC LOW TO COMMON
KA-3008-2034 6 in / 2 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC MID TO COMMON
KA-3008-2035 6 in / 2 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC HIGH TO COMMON
KA-3008-4031 12 in / 4 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) NO DC
KA-3008-4032 12 in / 4 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC TO ALL
KA-3008-4033 12 in / 4 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC LOW TO COMMON
KA-3008-4034 12 in / 4 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC MID TO COMMON
KA-3008-4035 12 in / 4 out FIXED DC
FACTORY CONFIGURABLE		 4.3-10 (F) DC HIGH TO COMMON

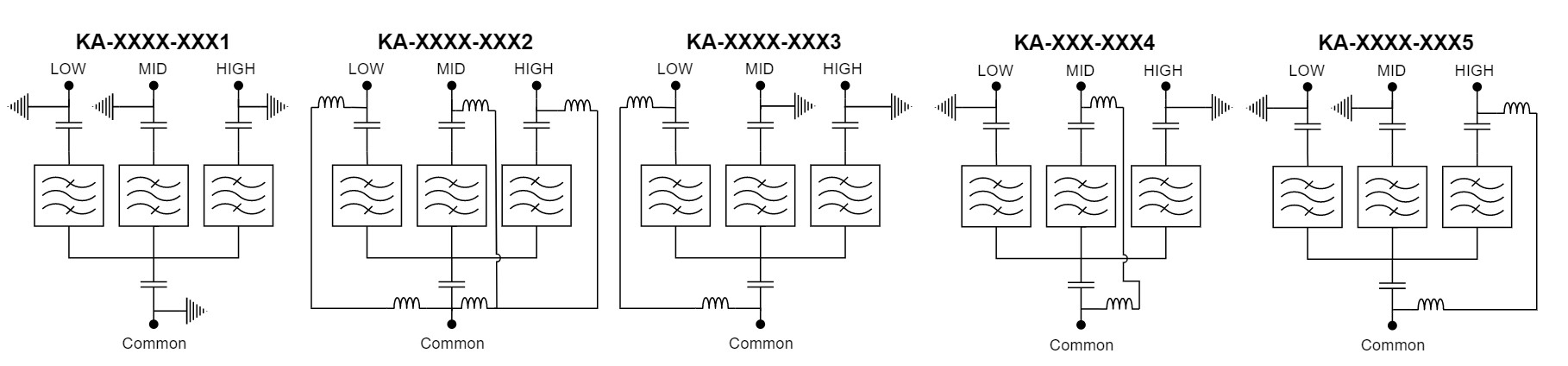

electrical block diagram
ELECTRICAL BLOCK DIAGRAM
KA-3008-XXXZ where
    Z denotes the DC path variant
     LOW port is 617-960 MHz
     MID port is 1695-2690 MHz
     HIGH port is 3300-5925 MHz
     Please note if DC ALL is used that all ports which are DC shorted need to have a DC block

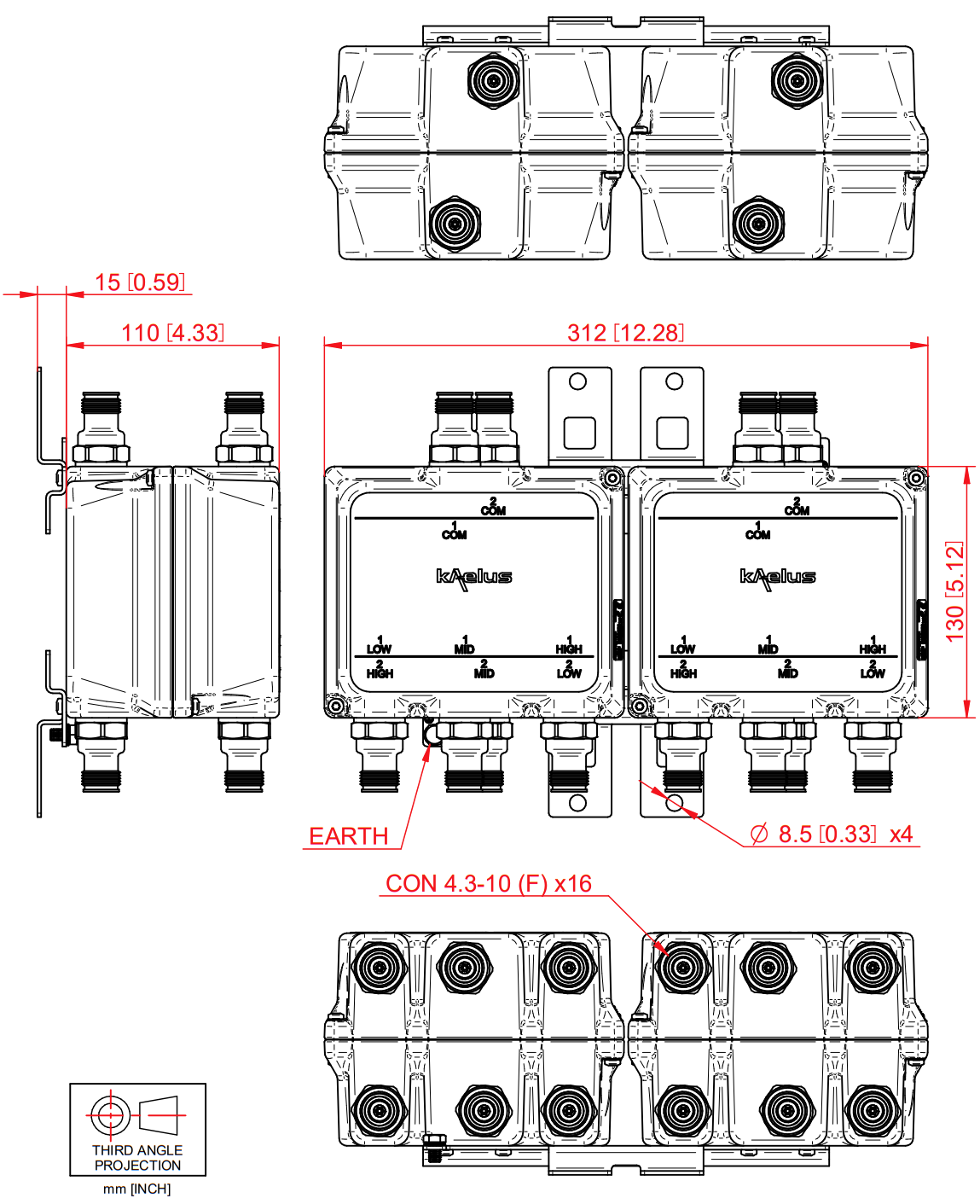

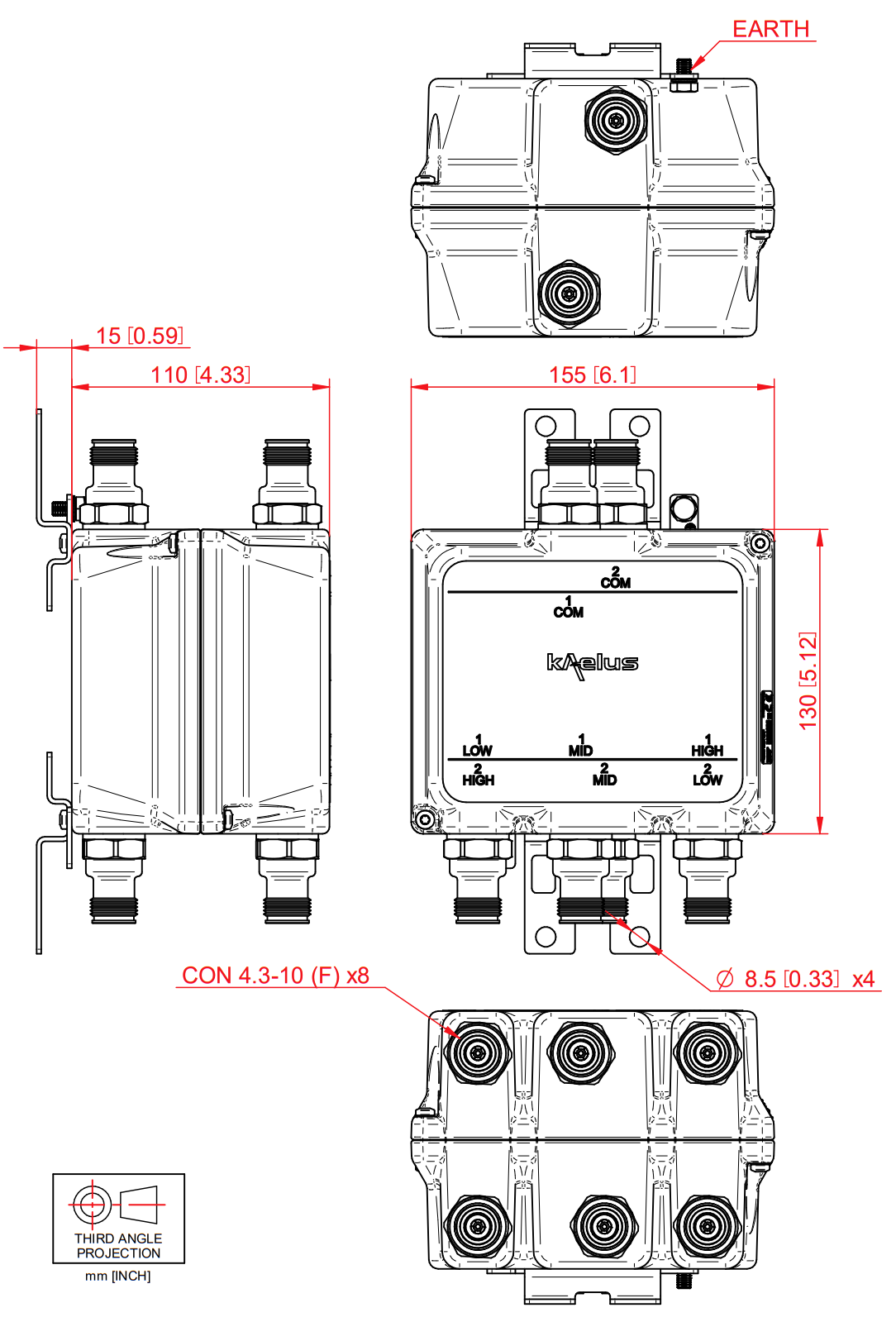

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
