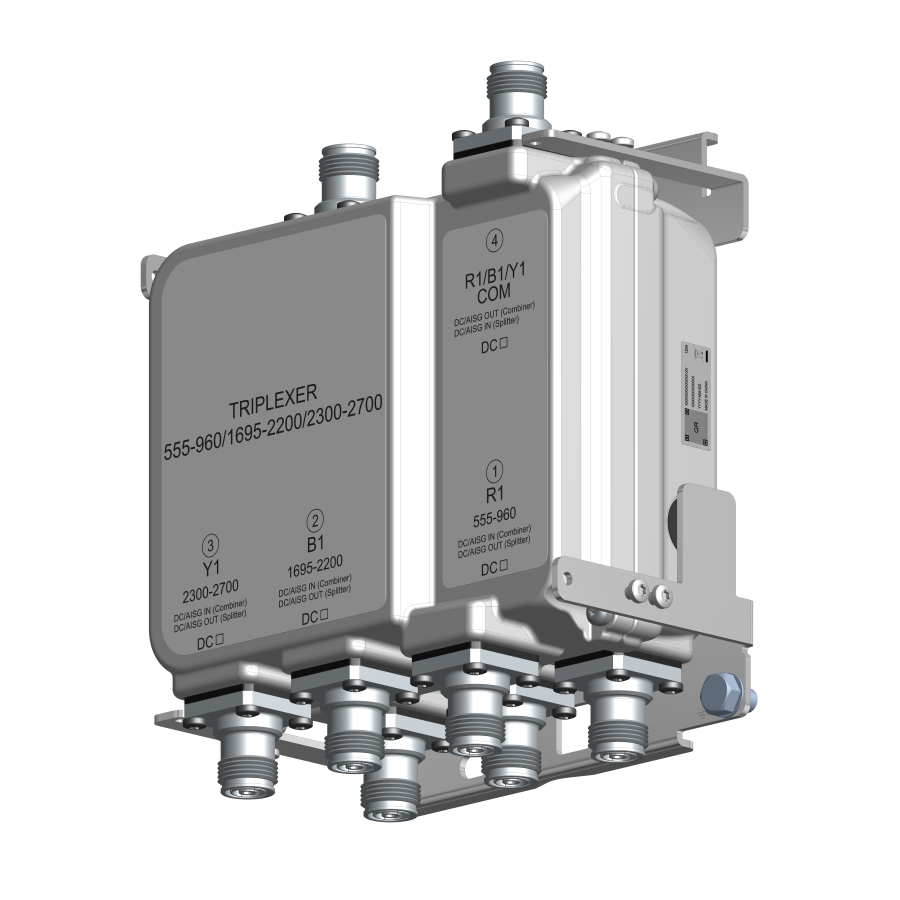

TBCT038F1V14-1

TWIN TRIPLEXER 555-960/1695-2200/2300-2700

Kaelus world-proven outdoor solutions provide strong RF performance coupled with rugged operation. The TBCT038 provides the following features:

FEATURES

  • Enables feeder sharing of various technologies including but not limited to LTE700, LTE800, EGSM900, PCS, WCS, 1800, 2300TDD, 2100, 2600
  • Low insertion loss and high isolation
  • Multiple DC/AISG bypass configurations available with built-in lightning protection
  • Low passive IM performance

technical specifications
Band Name 555 - 960 1695 -2200 2300 - 2700
Passband 555 - 960MHz 1695 - 2200MHz 2300 - 2700MHz
Insertion loss <0.2dB typical <0.2dB typical <0.2dB typical
Return loss >20dB >20dB >20dB
Maximum input power 250W (average) / 2kW (PEP) 250W (average) / 2kW (PEP) 250W (average) / 2kW (PEP)
Intermodulation products <-165 dBc typ at 2 x +43dBm TX Carrier
Attenuation in 555 - 960MHz N/A > 50dB > 50dB
Attenuation in 1695 - 2200MHz > 50dB N/A > 50dB
Attenuation in 2300 - 2700MHz > 50dB > 50dB N/A
electrical
Impedance 50Ohms
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range -40ºC to +65ºC | -40°F to 149°F
Ingress protection IP67
Lightning protection 5kA 8/20 µs
MTBF > 1,000,000 Hours
Compliance ETS 300 019 1-4 (OPERATIONAL)
ETS 300 019 1-1 (STORAGE)
dc / aisg
DC/AISG path is factory configurable, see ordering information
Passband 0 – 3MHz
Insertion loss 1dB maximun
Return loss 12dB minimun
Input voltage range ± 30V
DC current rating 3A continuous
Compliance 3GPP TS 25.461
mechanical
Dimensions H x D x W 166 x 92 x 190mm | 6.5 x 3.6 x 7.5in
Weight 4.7kg | 10.31lbs max
Finish Painted, NCS 1502-R
Connectors 4.3-10 (F) x 8 long neck
Wind Load Front 207N, Side 37N (Single)
Front 231N, Side 97N (Twin)
At 74m/s (AS/NZS 1170-2-2011 Structural design - Wind actions - Cyclone areas)
Mounting Pole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part Number Configuration Optional Features Connectors DC/AISG Configuration
TBCT038F1V10-1 2 in / 6 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) NO DC
TBCT038F1V11-1 2 in / 6 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) DC TO 2300-2700MHz
TBCT038F1V12-1 2 in / 6 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) DC TO 1695-2200MHz
TBCT038F1V13-1 2 in / 6 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) DC TO 555-960MHz
TBCT038F1V14-1 2 in / 6 out FIXED DC
FACTORY CONFIGURABLE
4.3-10 (F) DC TO ALL PATH
Note: DC autosense versions available, contact Kaelus for information
electrical block diagram
TBCT038F1VXX-Z where
    XX denotes the DC path variant
     Z denotes the mounting : "-1" = single mount and "-2" = dual mount
     LOW port is 555-960MHz band
     MID port is 1695-2200MHz band
     HIGH port is 2300-2700MHz band

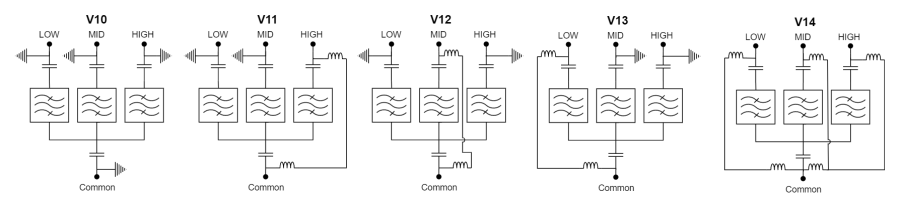

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

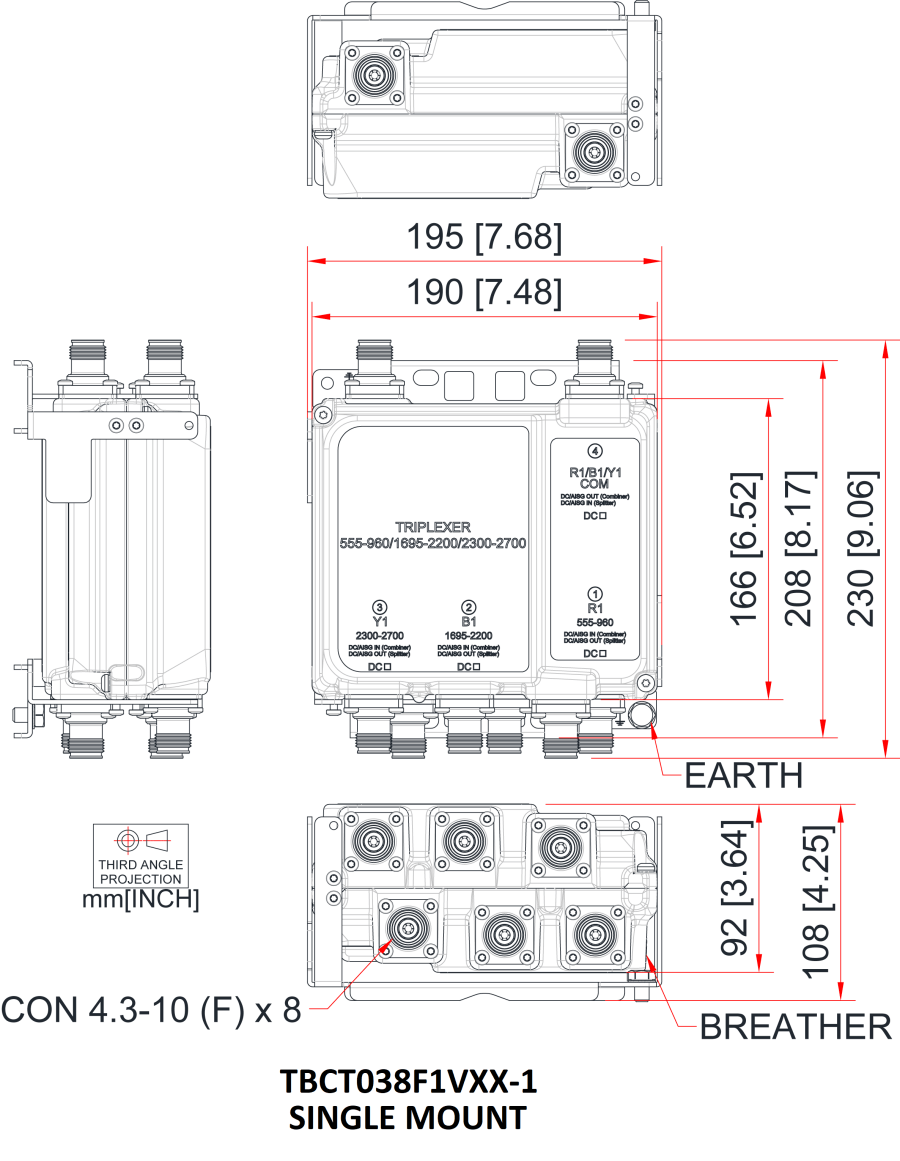

MECHANICAL BLOCK DIAGRAM
