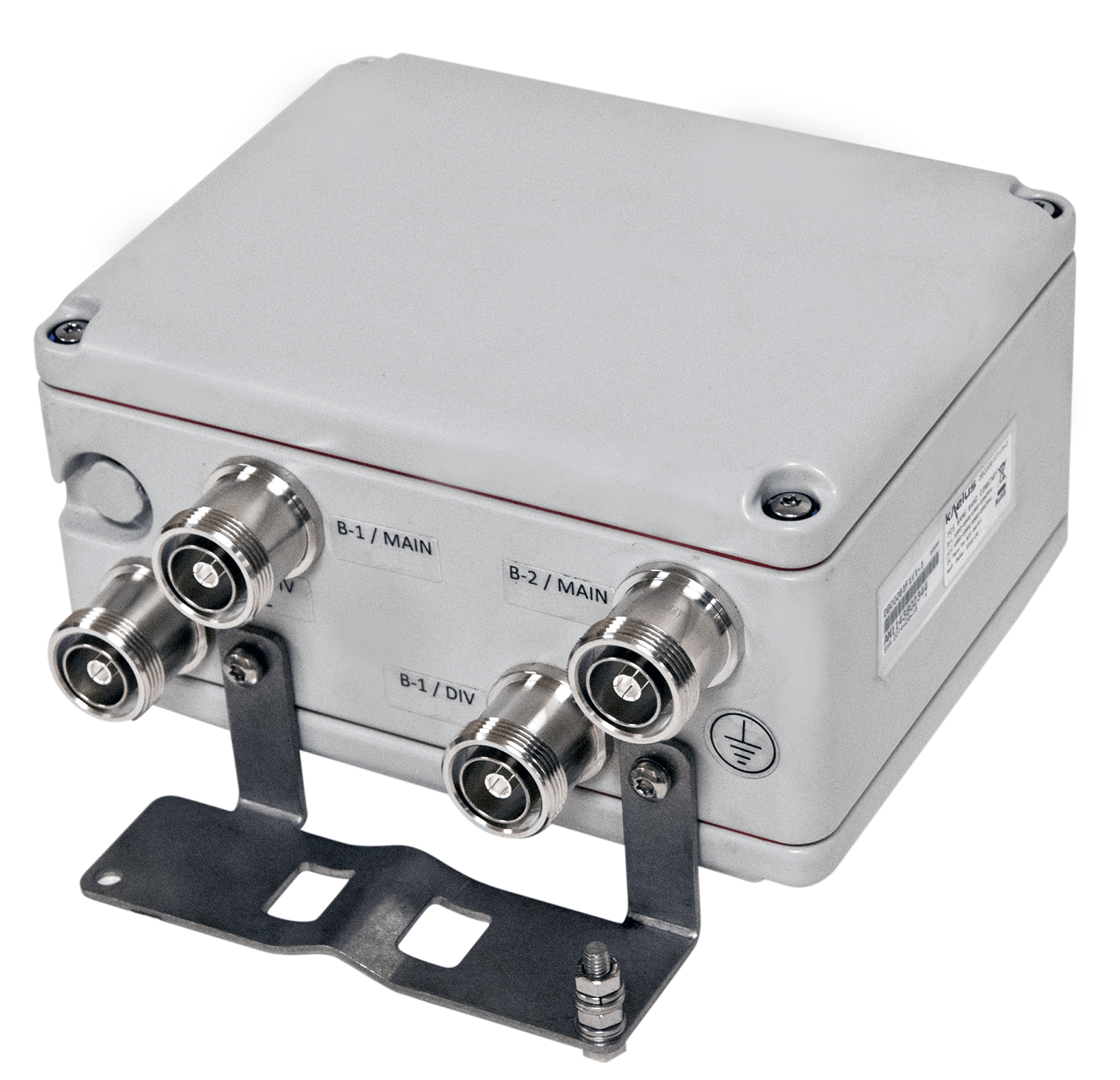

DBC0081F1V1-1

TWIN SAME BAND COMBINER, 1900

Designed to combine the 1900 A and the 1900 C or E bands the Kaelus DBC0081 provides a compact twin combining solution with low insertion, The DBC0081 solution minimizes feeders, TMA’s and antennas thereby saving both capital and operational expenditure when combining two base stations.

FEATURES

  • Allows two 1900 base stations to share feeders, TMAs and antennae
  • Variable DC / AISG pass options available
  • Low downlink and uplink insertion losses
  • Suitable for indoor and outdoor use

technical specifications
Port NameB-1 TX/RxB-2 TX/Rx
downlink
Passband1930 - 1945MHz1965 - 1990MHz
Insertion loss0.5dB typical
Return loss18dB minimum
Maximum input power100W (average) / 1kW (PEP)
uplink
Passband1850 - 1865MHz1885 - 1910MHz
Insertion loss0.65dB typical0.8dB typical
Return loss18dB minimum
isolation com port must be terminated in 50ohms
B1 TX frequency range35dB typical, 30dB minimum
B2 TX frequency range35dB typical, 30dB minimum
B1 RX frequency range35dB typical, 30dB minimum
B2 RX frequency range35dB typical, 30dB minimum
electrical
Impedance50Ohms
Intermodulation products-161dBc typical / -153dBc maximum all ports with 2 x 20W carriers in RX band
dc / aisg
Passband0 – 3MHz
Insertion loss4.5dB typical
Return loss9dB typical
Input voltage range+/- 33V maximum, 4A peak maximum
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-20ºC to +55ºC | +4°F to +131°F
Ingress protectionIP67
Altitude2,000m | 6,500ft
Lightning protectionRF: ±5kA maximum (8/20us)
MTBF>1,000,000 hours
ComplianceEMC:EN301 489, ETSI EN 300 019 class 4.1, RoHS
mechanical
Dimensions H x D x W203 x 158 x 109mm | 8 x 6.2 x 4.3in
Weight6.30kg | 13.9lbs
FinishPowder coated, light grey (RAL7035)
ConnectorsDIN 7-16 (F) x 6 long neck
MountingPole/wall bracket supplied with two metal clamps for 45-178 mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsDC/AISG Configuration
DBC0081F1V1-1TWIN 2 in /4 outFIXED DCDIN 7-16 (F)DC to ALL
DBC0081F1V2-1TWIN 2 in /4 outFIXED DCDIN 7-16 (F)DC to B1 1900 port
DBC0081F1V3-1TWIN 2 in /4 outFIXED DCDIN 7-16 (F)DC to B2 1900 port
DBC0081F1Vx-1TWIN 2 in /4 outFIXED DCDIN 7-16 (F)Various DC/AISG pass options available
electrical block diagram
ELECTRICAL BLOCK DIAGRAM

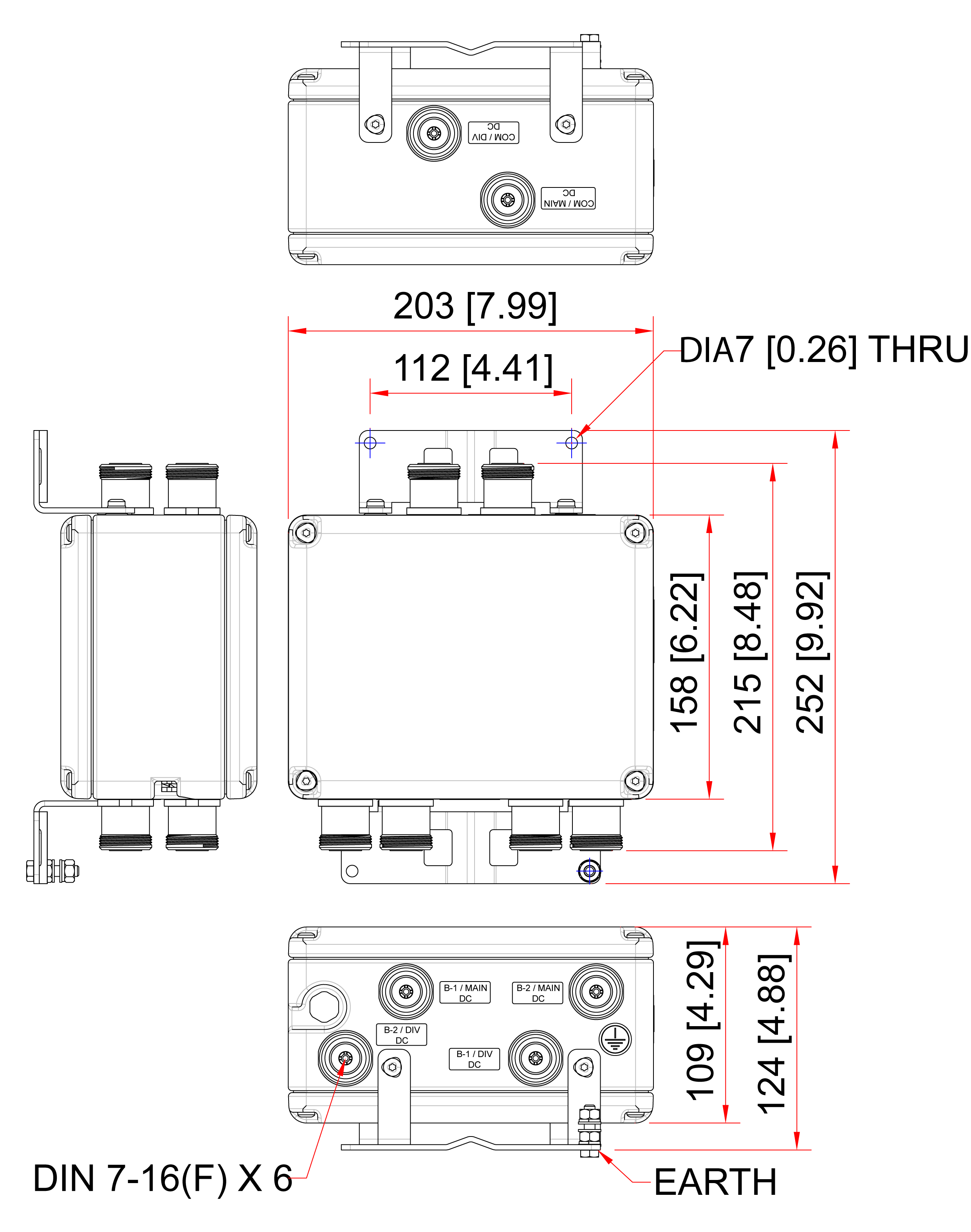

mechanical block diagram
MECHANICAL BLOCK DIAGRAM
