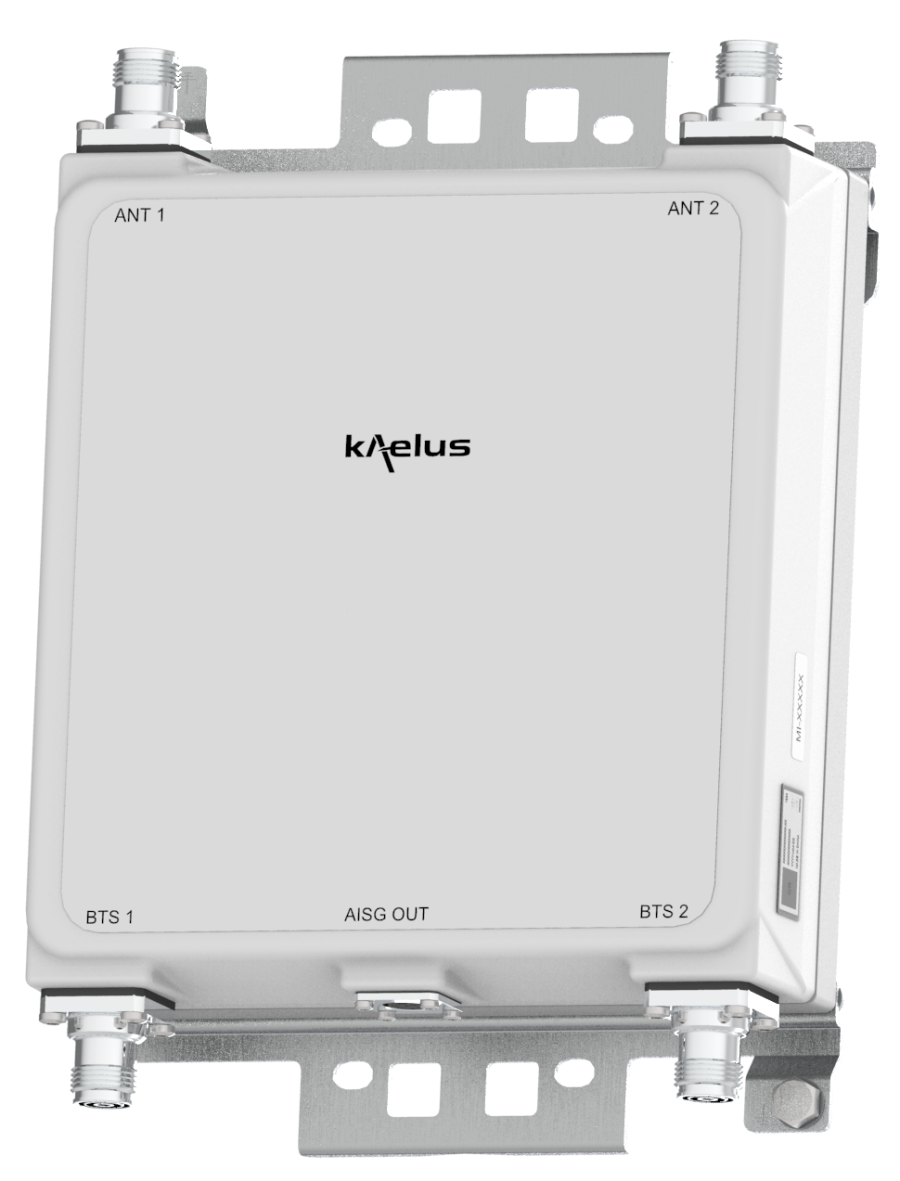

TMA TWIN 900 E-GSM

Designed to be deployed in collocated 900 E-GSM systems, the Kaelus MI-163 enhances cell uplink coverage in 900 through improved system noise figure, thereby saving operational and capital expenditure.

Microdata Telecom rebranding to Kaelus!
Microdata Telecom and Kaelus have had combined operations since Oct 2019 when Microdata acquired Kaelus. We strongly believe that by operating under one global brand we will clarify our strengthened position in the telecom market and from January 18th 2021, we are unifying the brands to Kaelus.

FEATURES

  • Improved base station sensitivity through gain in the 900 uplink
  • Excellent noise figure performance
  • Full AISG operation and RET antenna support, AISG2.0 compatible
  • Small and light for minimum visual impact
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name900 E-GSM
downlink
Passband925 - 960MHz
Insertion loss0.55dB typical, 0.8dB maximum
Return loss20dB typical, 18dB minimum
Maximum input power200W (average)
Intermodulation products-160dBc in RX band at ANT
uplink
Passband880 - 915MHz
Gain12dB
Return loss18dB typical, 16dB minimum
Bypass return loss14dB typical, 12dB minimum
Bypass loss2.7dB maximum
Noise figure1.4dB typical
Output IP325dBm typical
electrical
Impedance50Ohms
power supply and alarm (current window alarm mode, default)
Current window alarm mode (CWA) is the default operating mode and can be configured to specific customer requirements. Please contact Kaelus for more information.
DC supply voltage+9 to +15V DC
DC supply current, normal mode100- 130mA @ 12V
DC supply current, alarm mode170 - 180 mA (9 -15V input)
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port.
DC supply voltage+9.0V to +30V DC
AISG version2.0
Power consumption, AISG mode< 2W
AISG connector, current ratingIEC60130-9, 8-pin female
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40°F to +149°F
Ingress protectionIP67
Lightning protectionIEC61312-1, RF: ±5kA (8/20us), AISG: ±2.5kA (8/20us)
MTBF>1,400,000 hours
ComplianceEMC: EN 301 489-8
Safety: EN 62368-1
Operation: ETSI EN 300 019-1-4 class 4.1E
Storage: ETS 300 019-1-1 class 1.2
mechanical
Dimensions H x D x W246 x 68 x 231 mm | 9.7 x 2.7 x 9in (excluding brackets and connectors)
Weight4.7kg | 10.4lbs
FinishPowder coated, NCS 1502-R
Connectors4.3-10 (F) long neck or 7/16(F)
AISG (F)
MountingPole/wall bracket using two metal clamps, suits 40-140mm diameter poles
shipping information
Carton size375 x 299 x 169mm │ 14.76 x 11.77 x 6.65in
Gross weight (including packaging)5.5kg │ 12.13lb
Carton Qty / Pallet48
ordering information
Part NumberConfigurationOptional FeaturesConnectorsAISG Mode
MI-16301TWIN, 2 in / 2 outBASE MODEL7/16 (F)Refer to AISG MODE OF OPERATION section
MI-16331TWIN, 2 in / 2 outBASE MODEL4.3-10 (F)Refer to AISG MODE OF OPERATION section

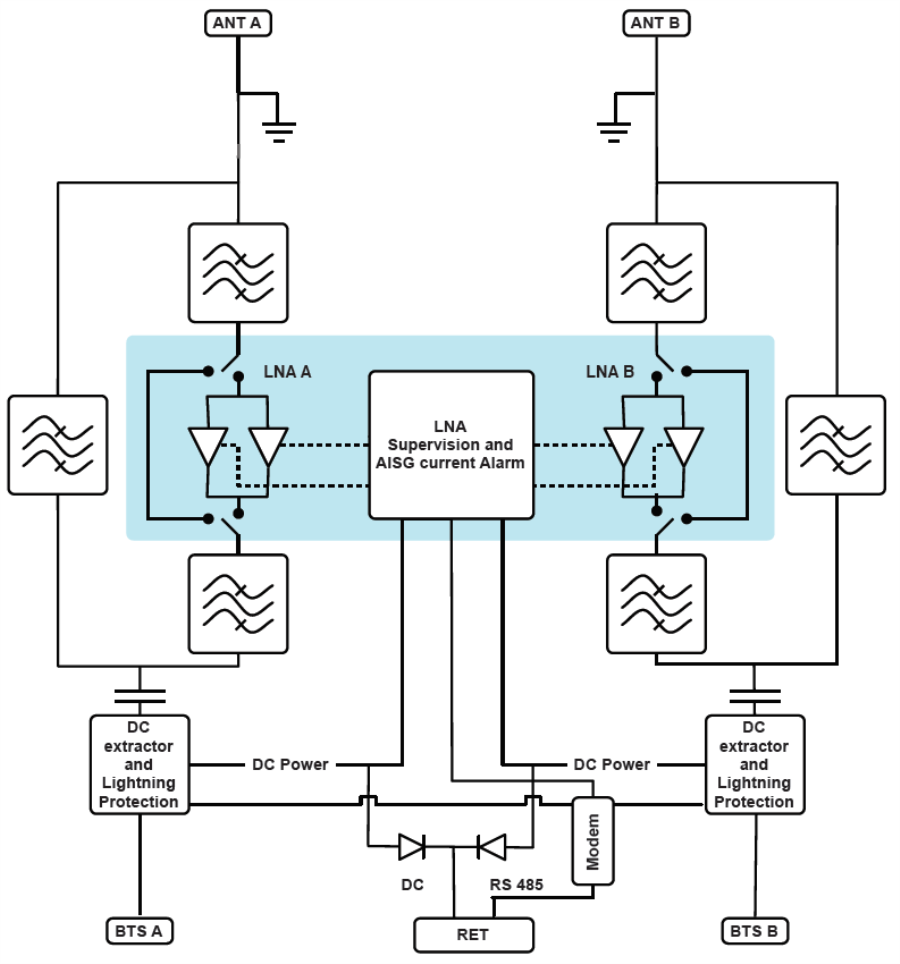

electrical block diagram
ELECTRICAL BLOCK DIAGRAM

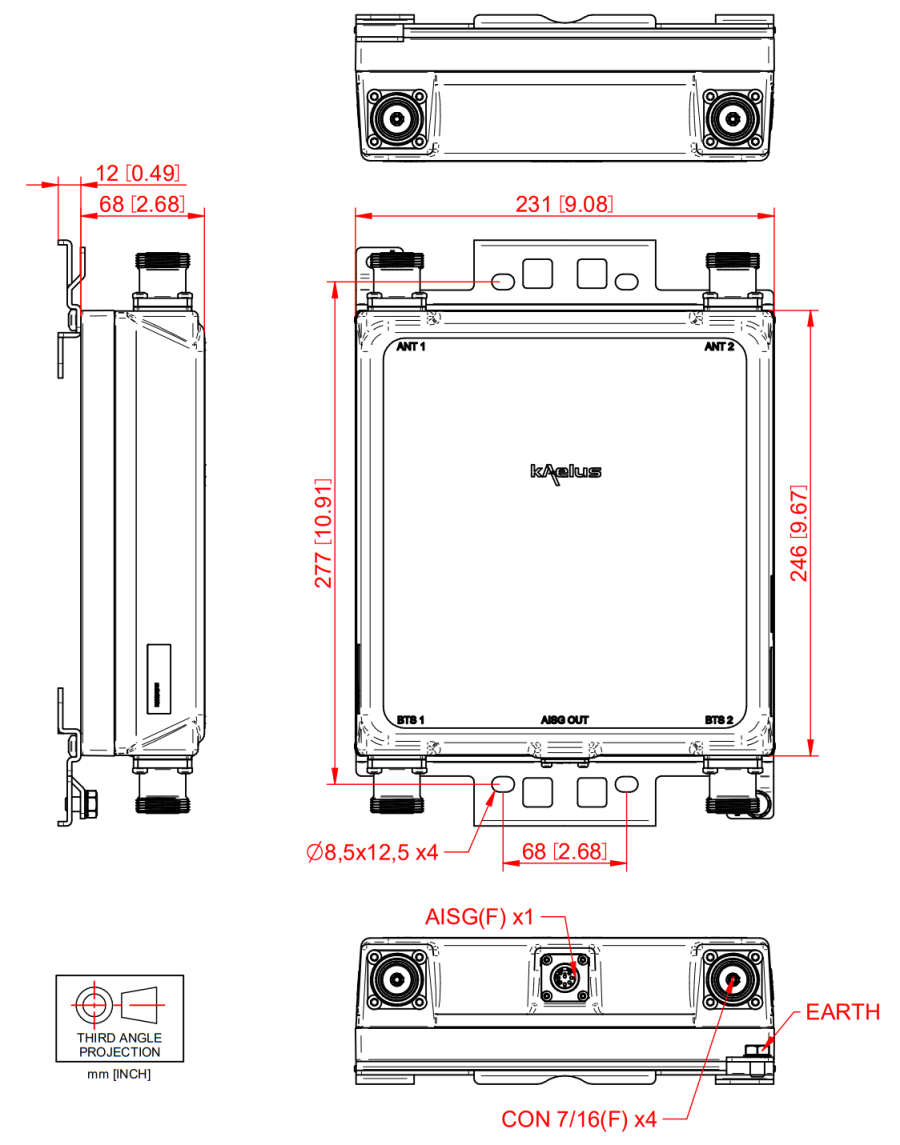

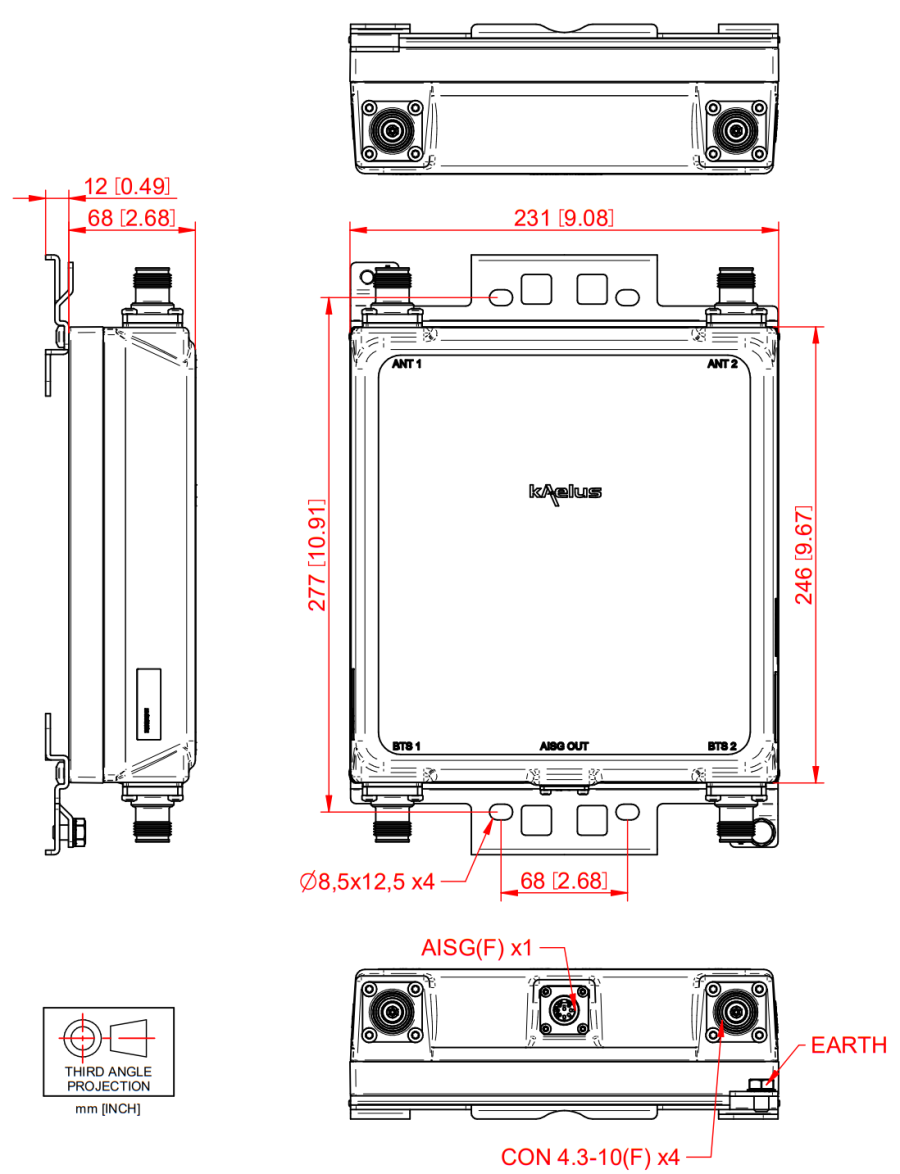

mechanical block diagram
MECHANICAL BLOCK DIAGRAM MECHANICAL BLOCK DIAGRAM
