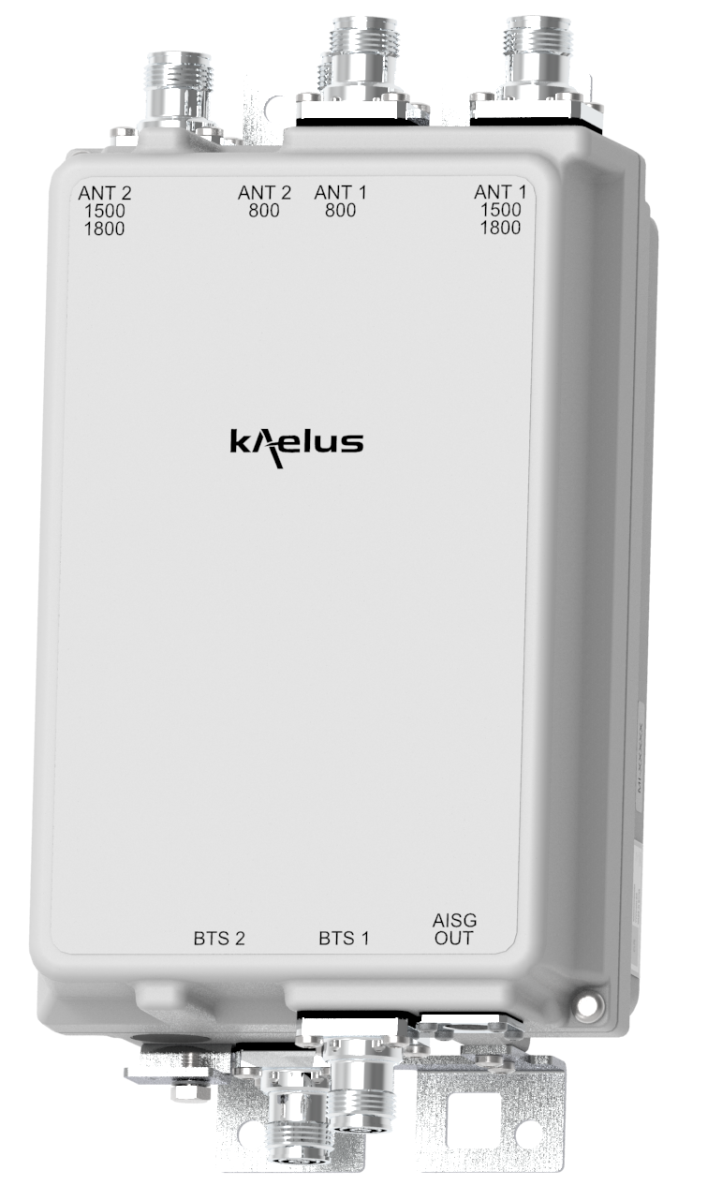

TMA TWIN 800 L-Band+1800 Bypass

Designed to be deployed in collocated 800, 1800 and L-Band systems, the Kaelus MI-188 enhances cell uplink coverage in 800, through improved system noise figure, thereby saving operational and capital expenditure.

Microdata Telecom rebranding to Kaelus!
Microdata Telecom and Kaelus have had combined operations since Oct 2019 when Microdata acquired Kaelus. We strongly believe that by operating under one global brand we will clarify our strengthened position in the telecom market and from January 18th 2021, we are unifying the brands to Kaelus.

FEATURES

  • Improved base station sensitivity through gain in the 800 uplink
  • 2 Antenna ports: one port to low band (800) and one port to high band (1800 and L band)
  • Excellent noise figure performance
  • Full AISG operation and RET antenna support, AISG2.0 compatible
  • Small and light for minimum visual impact
  • Passive 1800 Bypass band response for feedline/antenna non-intrusive PIM testing
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
Band Name800
downlink
Passband791 - 821MHz
Insertion loss0.3dB typical
Return loss18dB
Maximum input power200W (average)
Intermodulation products-160dBc in RX band at ANT
uplink
Passband832 - 862MHz
Gain12dB
Return loss16dB
Bypass return loss12dB
Bypass loss2dB typical
Noise figure1.4dB typical
Output IP325dBm typical
1800 and l-band
Passband1427 - 1517MHz & 1710 - 1880MHz
Insertion loss0.2dB typical
Maximum input power200W average
Intermodulation products-160dBc at ANT
electrical
Impedance50Ohms
aisg mode of operation (auto selected on valid aisg 2.0 frames)
AISG signals can be applied to the BTS ports. The TMA unit switches to AISG mode when valid frames are detected on either port.
DC supply voltage+9.0V to +30V DC
AISG version2.0
Power consumption, AISG mode< 2W
AISG connector, current ratingIEC60130-9, 8-pin female
environmental
For further details of environmental compliance, please contact Kaelus.
Temperature range-40ºC to +65ºC | -40°F to +149°F
Ingress protectionIP67
MTBF>1,200,000 hours
ComplianceEMC: EN 301 489-8
Safety: IEC/EN 62368-1
Operation: ETSI EN 300 019-1-4 class 4.1E
Storage: ETS 300 019-1-1 class 1.2
mechanical
Dimensions H x D x W249 x 123 x 164 mm | 9.8 x 4.8 x 6.4in (excluding brackets and connectors)
WeightTBD
FinishPowder coated, NCS 1502-R
MountingPole/wall bracket using two metal clamps, suits 40-140mm diameter poles
ordering information
Part NumberConfigurationOptional FeaturesConnectorsAISG Mode
MI-18801TWIN, 2 in / 4 outBASE MODEL7/16 (F)
1xAISG		Refer to AISG MODE OF OPERATION section
MI-18831TWIN, 2 in / 4 outBASE MODEL4.3-10 (F)
1xAISG		Refer to AISG MODE OF OPERATION section
electrical block diagram

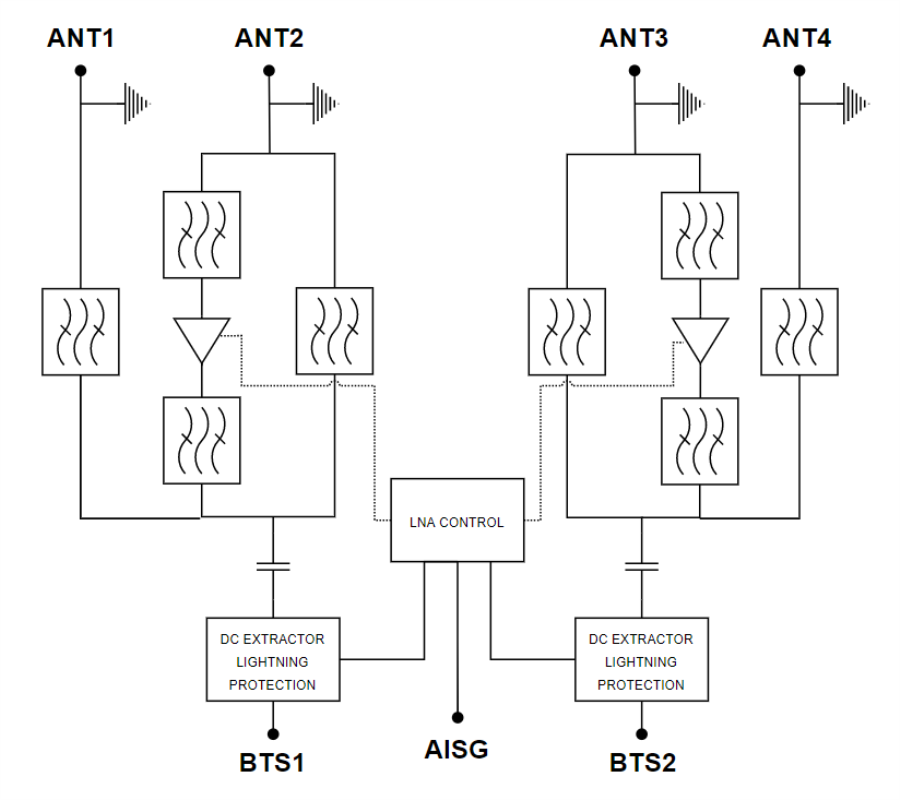

ELECTRICAL BLOCK DIAGRAM
mechanical block diagram

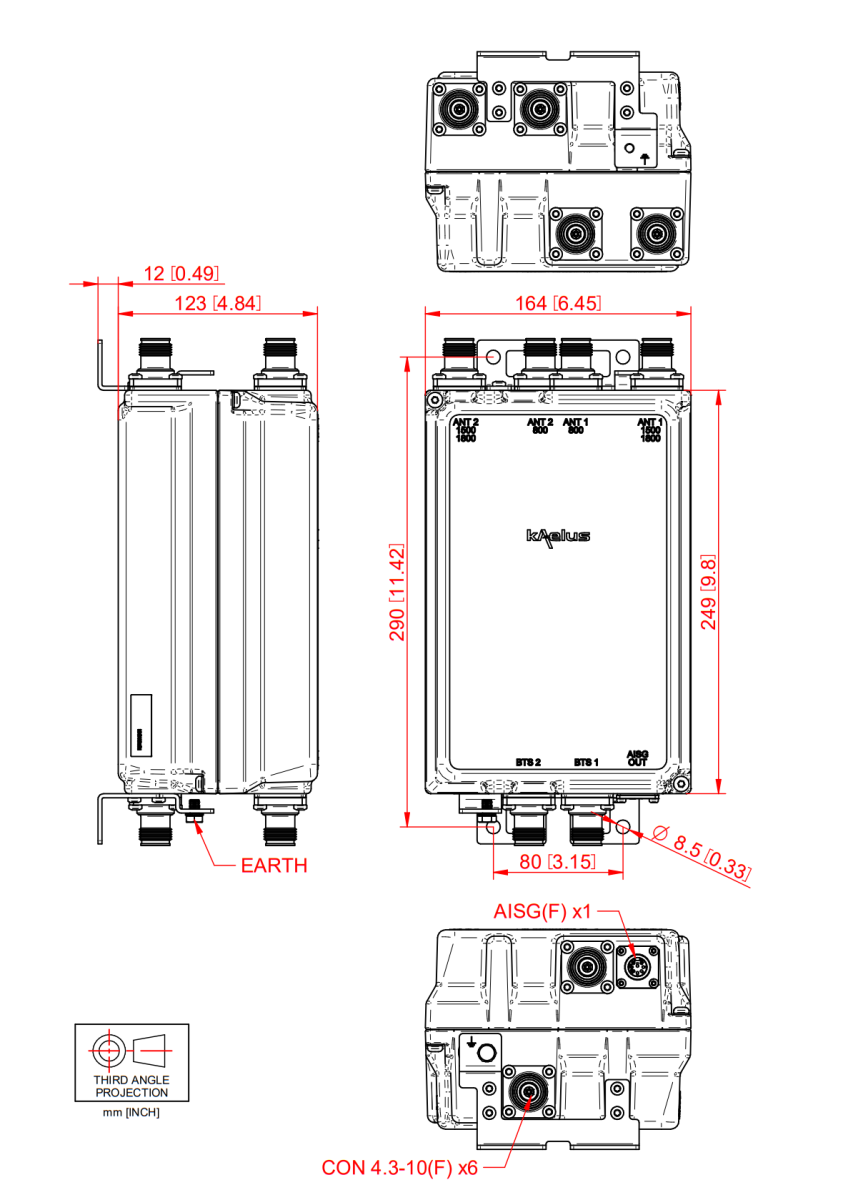

MECHANICAL BLOCK DIAGRAM
