Outdoor case for iBA-3501C

Turn your iBA-3501C into a portable PIM tester for field use! Equipped with internal shock absorbers, this outdoor case will protect your iBA-3501C from shocks up to 50G. Rated to IP54 ingress protection, the iBA3501C is well protected from the weather. It is equipped with castor wheels and allows you to transport your iBA-3501C with ease. With this case, you can confidently transport your iBA-3501C to any remote location and quickly set up the equipment: simply remove the front and back cover, connect it to AC power, and perform PIM measurements. Purchase separately or with an IBA-3501C, we will fit it for you!


  • Easy set up
  • Equipped with castor wheels and handles
  • Convenient storage of the AC and RF cables in the back cover.
  • Internal shock absorber protects the iBA-3501C
  • Ingress Protection IP54

technical specifications
Dimensions H x D x W378 x 574 x 790mm | 14.9 x 22.6 x 31.1in
Weight40kg | 88lbs (Includes IBA-3501C)
CoolingForced air
Front and Back panel to be removed during use
Temperature range+10ºC to +40ºC | +50°F to +104°F (operating)
Ingress protectionIP54 with cover fitted
Operational humidity5% to 90% non-condensing
Storage temperature range-20°C to +60°C | -4°F to +140°F
ordering information
Part NumberDescription
CA123506Outdoor case for iBA-3501C
iBA-3501C Bench PIM tester for 3660-3800MHz

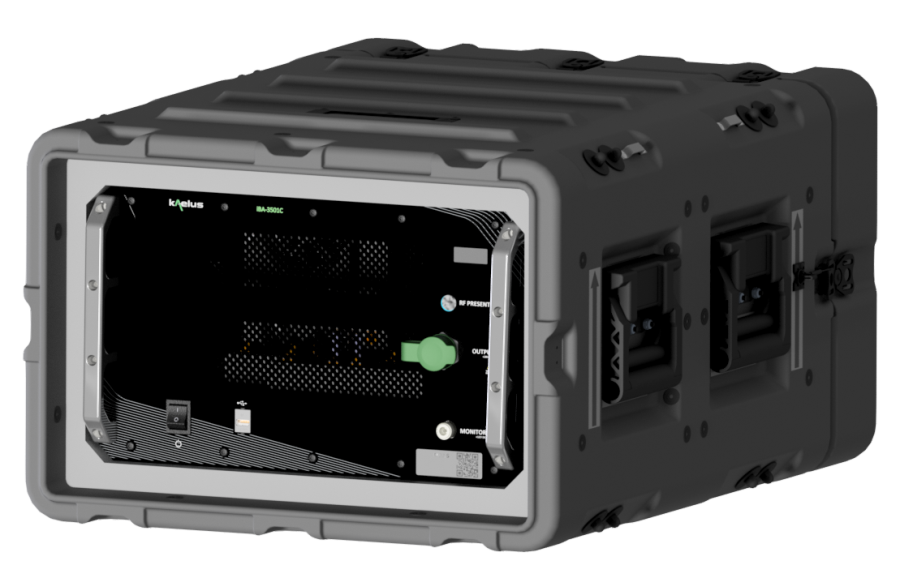

Front view of the iBA-3501C fitted to the Outdoor case

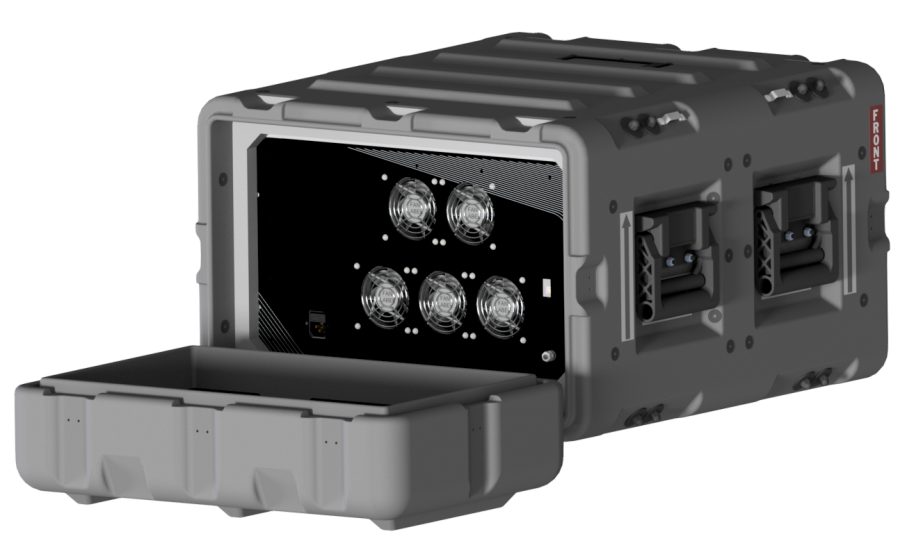

Back view of the iBA-3501C fitted to the Outdoor case
