Low Passive Intermodulation (PIM) Load



FEATURES

  • Low Passive Intermodulation (PIM)
  • Dual gender 7-16 DIN or 4.3-10
  • Consistent PIM level over wide frequency range
  • Used for accurate PIM measurement
  • Rugged and light weight design
  • Reversible End Cap for personal protection
  • Dust covers for prolonged life
  • Coupling ring for lanyard attachment


technical specifications
system
CAUTION: The Kaelus PIL-0006 absorbs high-level RF signals and may become warm during normal operation. To exceed the maximum RF power rating may damage the device and will void the warranty.
Frequency range 610MHz - 4000MHz
RF impedance 50ohms
Return loss 17.6dB minimum
Passive intermodulation 2 x 43dBm carriers, -123dBm maximum, -130dBm typical
2 x 46dBm carriers, -118dBm maximum, -122dBm typical
RF power rating 100W average
mechanical
Part Number PIL-0006A PIL-0006B
Connector Dual Gender 7-16 DIN Female and 7-16 DIN Male Dual Gender 4.3-10 Female and 4.3-10 Male
Mating torque 25 Nm with wrench supporting connector flange 5 Nm with wrench supporting connector flange
Weight 8.0kg | 17.6lbs
Dimensions (L x D) 200 x 200 x 92 mm | 7.8 x 7.8 X 3.6 in
environmental
Temperature range -10ºC to +50ºC | +14°F to +122°F (operational)
ordering information
Part Number Description
PIL-0006A Low Passive Intermodulation (PIM) Load - 7-16 Connectors
PIL-0006B Low Passive Intermodulation (PIM) Load - 4.3-10 Connectors

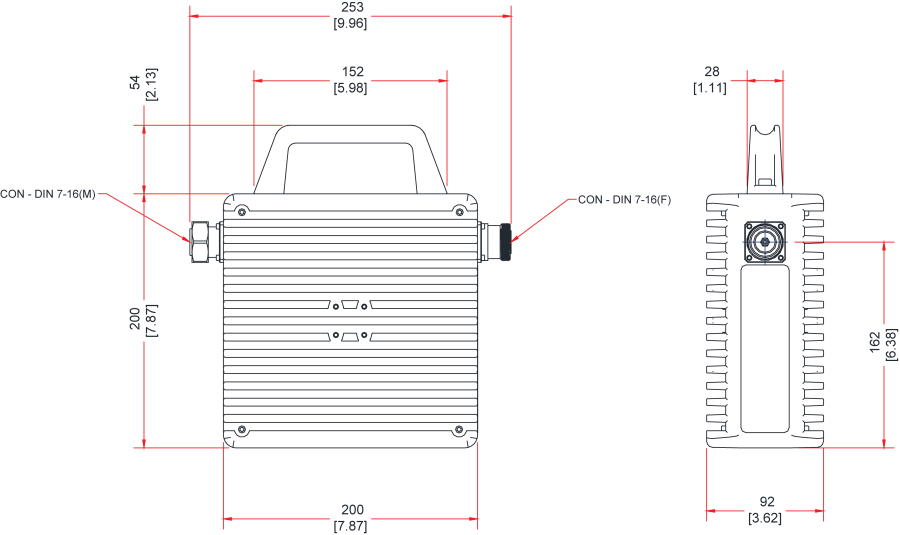

mechanical block diagram
