Low PIM RF Adaptors

Low PIM RF Adaptors

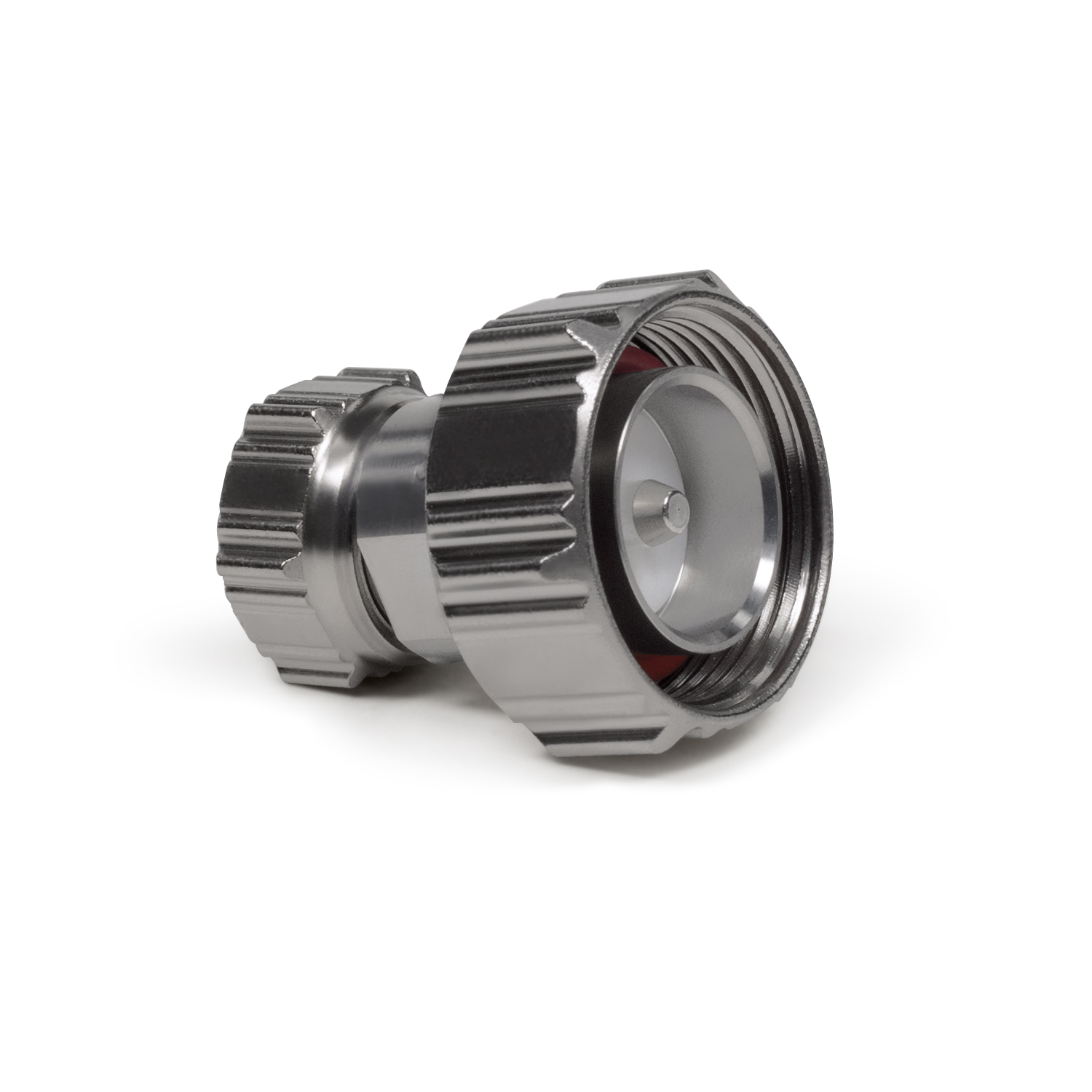

Low PIM RF adaptors

FEATURES

  • Better than -122dBm with 2x20W (-165dBc) Performance
  • Wide range of adaptors available to suit different connector configurations
  • RoHS compliant
Download PDF
GET A QUOTE
Download PDF
GET A QUOTE
technical specifications
rf specifications
PassbandDC - 6GHz
Return loss18dB
Intermodulation products-165dBc with 2x20W
mechanical
Weight0.05kg | 0.1lb
ConnectorsSee ordering information
ordering information
Part NumberDescription
R40-101007/16 (M) TO 4.3-10 (F)
R40-101017/16 (F) TO 4.3-10 (F)
R40-101147/16 (M) TO 4.3-10 (M)
R40-101117/16 (F) TO 4.3-10 (M)
R40-101024.3-10 (F) TO 4.3-10 (F)
R40-101064.3-10 (M) TO 4.3-10 (M)
R79-100937/16 (F) TO 7/16 (F)
R40-100547/16 (M) TO 7/16 (M)
optional accessories - sold separately
Part NumberDescription
R92-0459Connector Cleaning Kit
