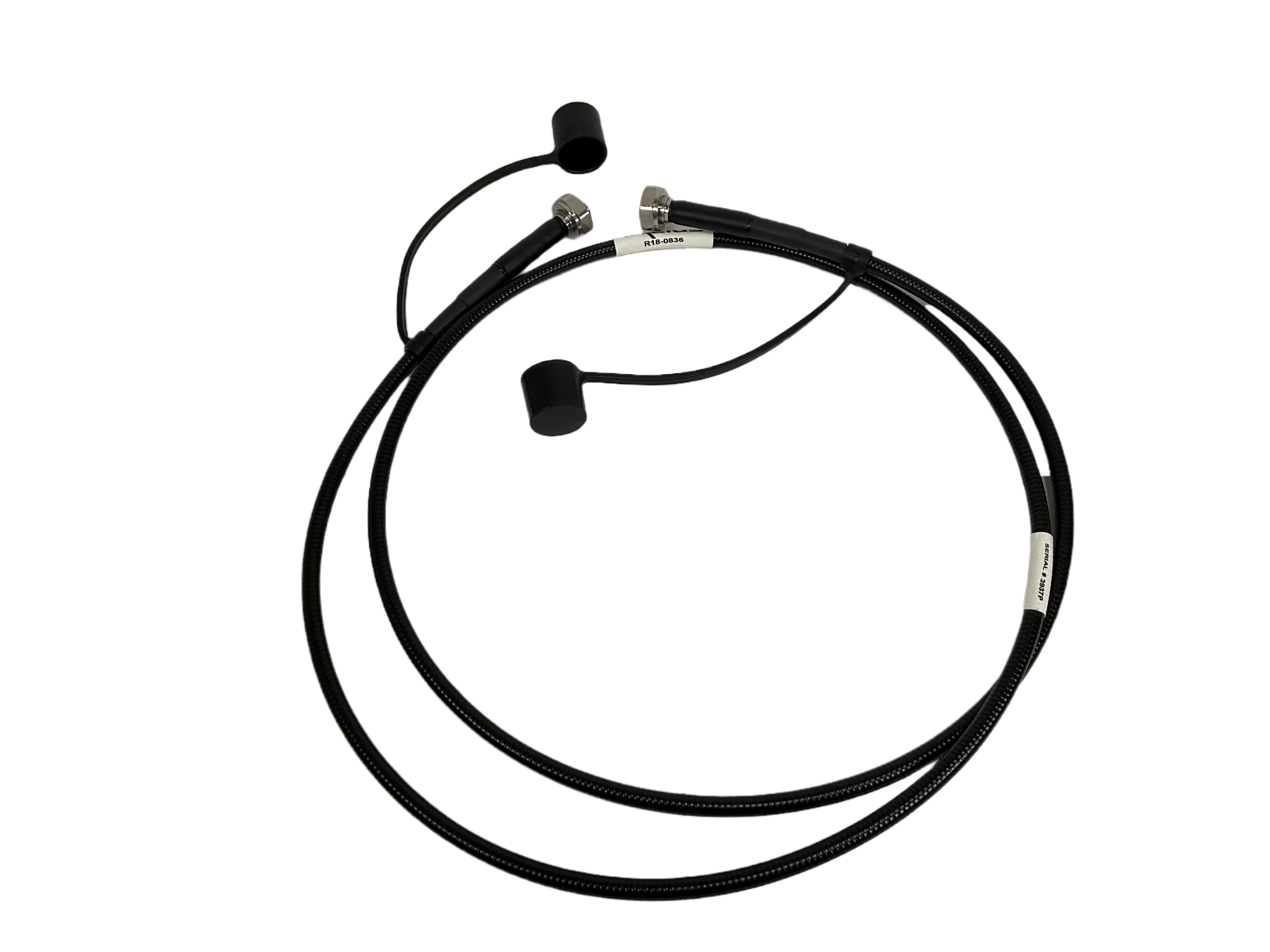

Rugged, Low PIM Cable Assembly

Rugged, Low PIM Cable Assembly



FEATURES

  • Much easier to handle than corrugated cable
  • Better than -122dBm with 2x20W (-165dBc) Performance
  • Low attenuation
  • Rugged, durable, steel armored design
  • Water resistant
  • RoHS compliant

technical specifications
rf specifications
Passband DC - 4GHz
Return loss 16dB
Return loss 16dB
Intermodulation products -165dBc with 2x20W
Velocity factor 0.83
mechanical
Weight 0.5kg | 1.0lb
Connectors See ordering information
Cable length 2.7m | 8ft10in
Mating life cycle 1000
Mating torque Install slightly more than hand tight to the RF output port of the PIM Analyzer. Tightening with a torque wrench is not recommended.
environmental
Temperature range -10ºC to +50ºC | +14°F to +122°F (operational)
ordering information
Part Number Description
R18-0836 RUGGED, LOW PIM CABLE ASSEMBLY, 7/16 (M) TO 7/16 (M)
R18-0903 RUGGED, LOW PIM CABLE ASSEMBLY, 7/16 (M) TO 4.3-10 (M)
optional accessories - sold separately
Part Number Description
R92-0459 Connector Cleaning Kit
