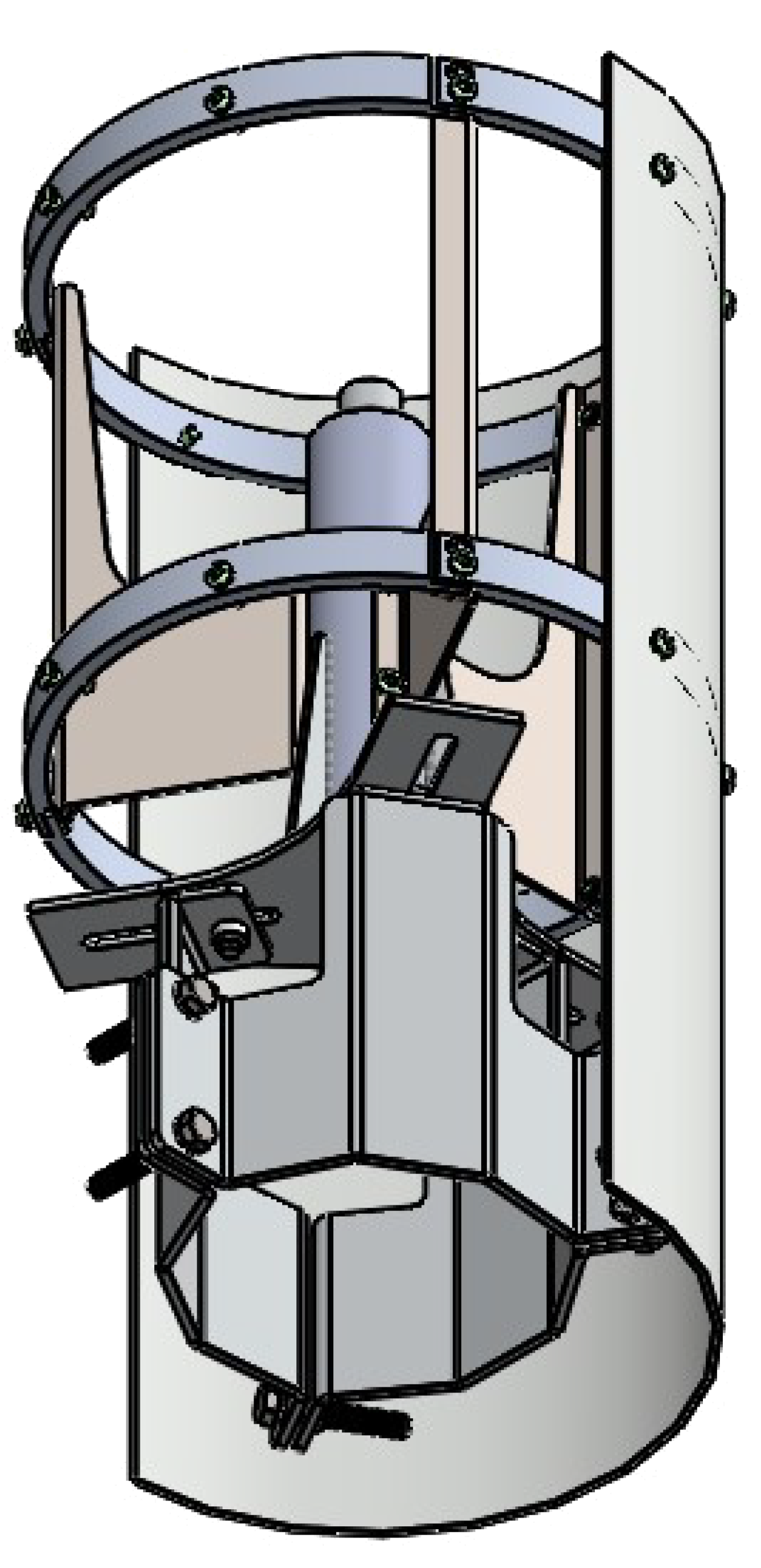

Mounting kit for Canister Antenna D140-220mm

Mounting kit for Canister Antenna D140-220mm

KIT-000041-P

Designed for top pole installation. Pole D140-220mm.

This kit is compatible with Antennas;

M0MPBx0x-V1-P1
MCMPBx0x-V1-P1
MPMPBx0x-V1-P1

DOWNLOAD DATA SHEET
GET A QUOTE
DOWNLOAD DATA SHEET
GET A QUOTE
Specifications
mechanical
Dimensions Length, Width, Depth [ inch|mm]  16.69 x 10.00 | 424 x 254
Net Weight [lbs|kg]                 8.82 | 4.0
Volume for Canister Antenna with Cover [ft3|m3]            2.04 | 5.8
Bracket material        Aluminium
Screw/nut material      Stainless steel
Cover material ASA
Cover color [RAL] 7035
Windload, Calculation [mph|km/h] 93.2 | 150
Windload, Maximum (total windload, including antenna) [lbf|kg]    33.8 | 15.3
Survival Wind Speed [mph|km/h]     150 | 241.4
Shipping information
Packing Size: Length, Width, Depth [inch|mm]   23.6 x 16.5 x 13.8 | 600 x 419 x 350
Shipping Weight [lbs|kg]                       16.3 | 7.3

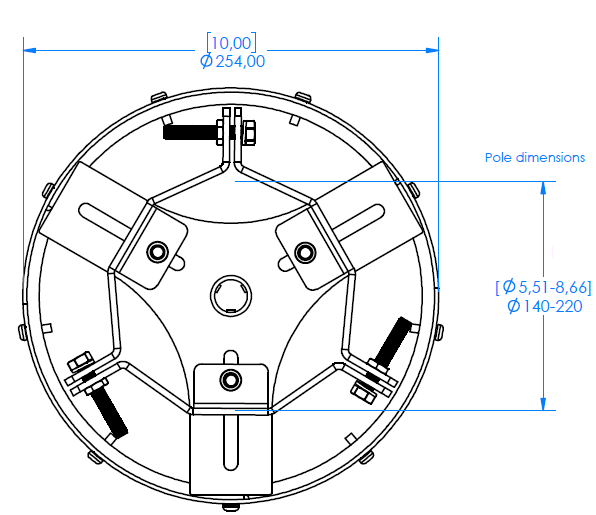

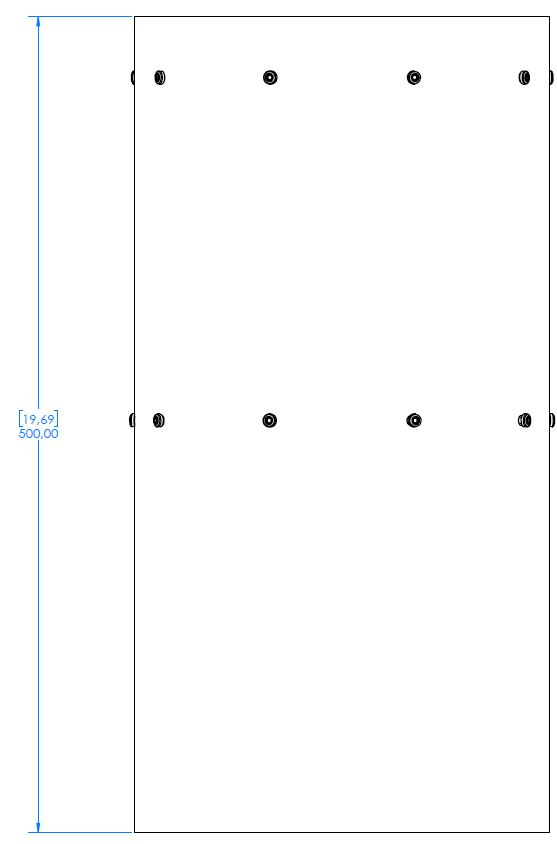

mechanical block diagram
