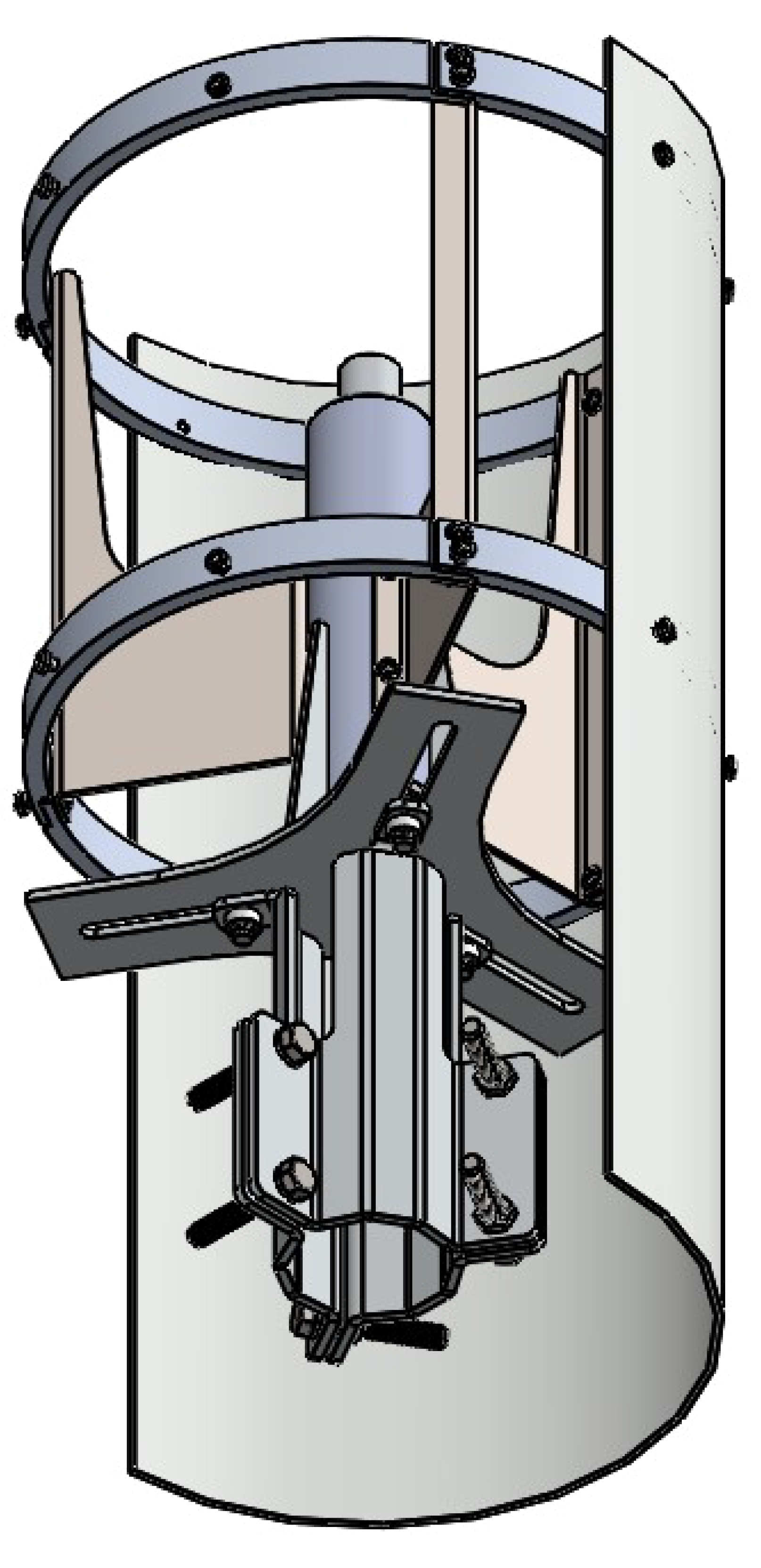

Mounting kit for Canister Antenna D60-160mm

Mounting kit for Canister Antenna D60-160mm

KIT-000040-P

Designed for Top pole installation. Pole D60-160mm

This kit is compatible with Antennas;

M0MPBx0x-V1-P1
MCMPBx0x-V1-P1
MPMPBx0x-V1-P1

DOWNLOAD DATA SHEET
GET A QUOTE
DOWNLOAD DATA SHEET
GET A QUOTE
Specifications
mechanical
Dimensions Length, Width, Depth [ inch|mm]  10.24 x 10.00 x 18.19 | 260 x 254 x 462
Net Weight [lbs|kg]        8.38 | 3.8
Volume for Canister Antenna with Cover [ft3|m3]                         1.62 | 0.046
Bracket material        Aluminium
Screw/nut material      Stainless steel
Cover material ASA
Cover color [RAL] 7035
Windload, Calculation [mph|km/h] 93.2 | 150
Windload, Maximum (total windload, including antenna) [lbf|kg]    26.7 | 12.1
Survival Wind Speed [mph|km/h]     150 | 241.4
Shipping information
Packing Size: Length, Width, Depth [inch|mm]   22 x 13.8 x 12.2 | 558.8 x 350.5 x 309.9
Shipping Weight [lbs|kg]                       13.2 | 6

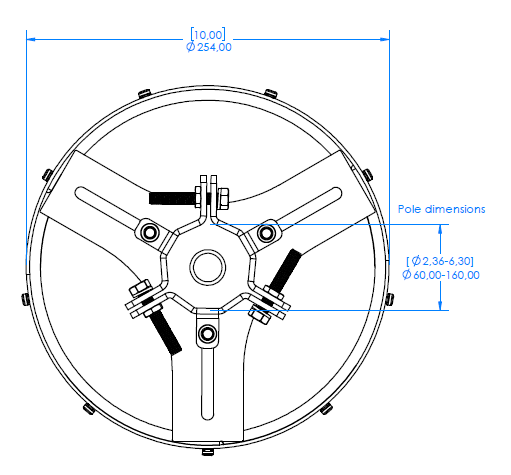

mechanical block diagram
