iBA Series 40W

Bench Top PIM Analyzers

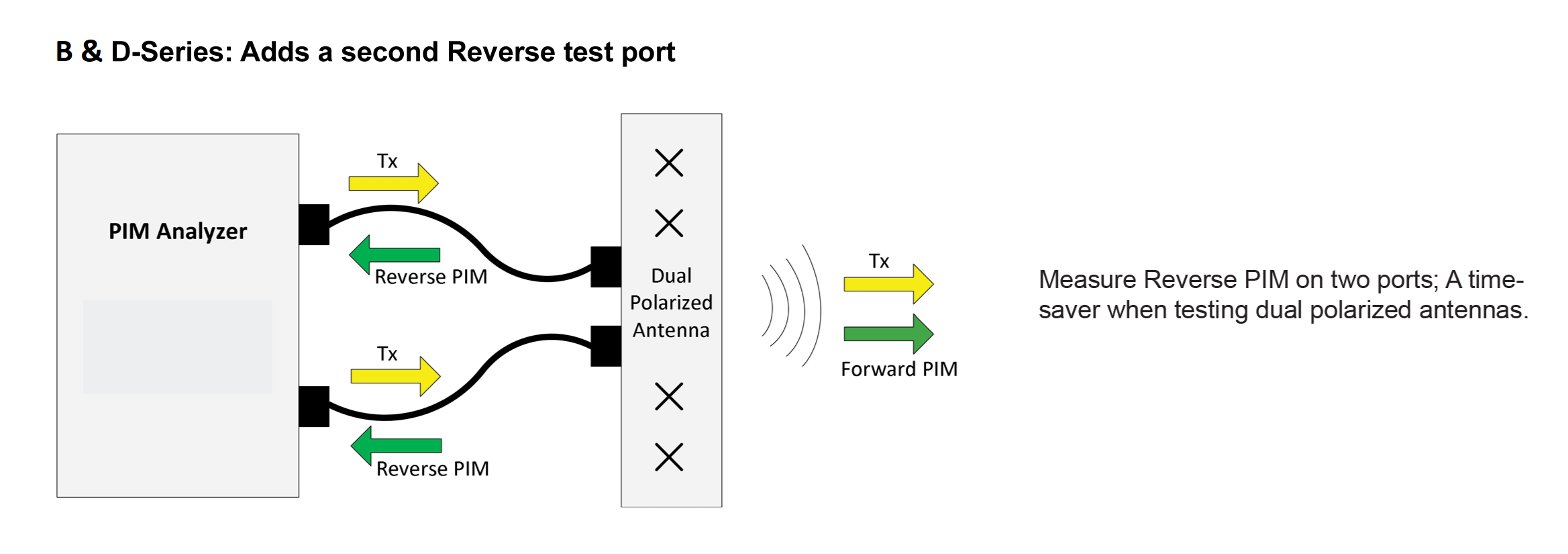

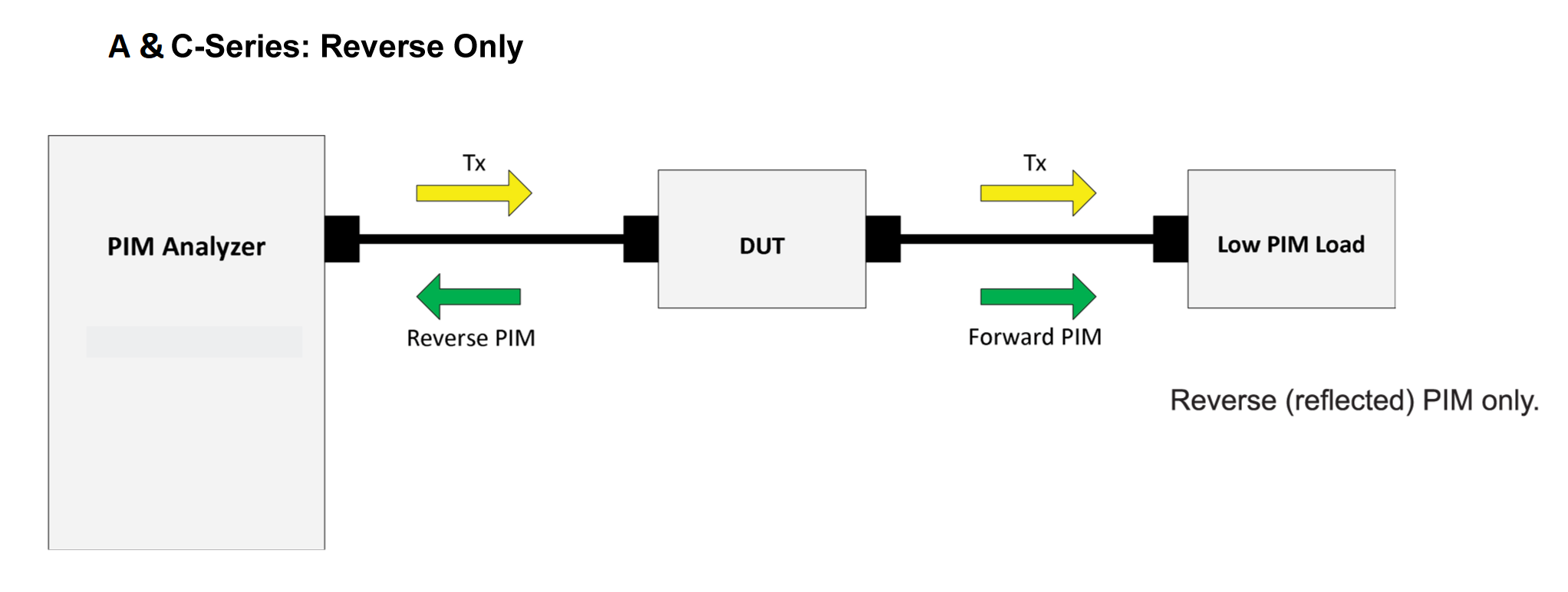

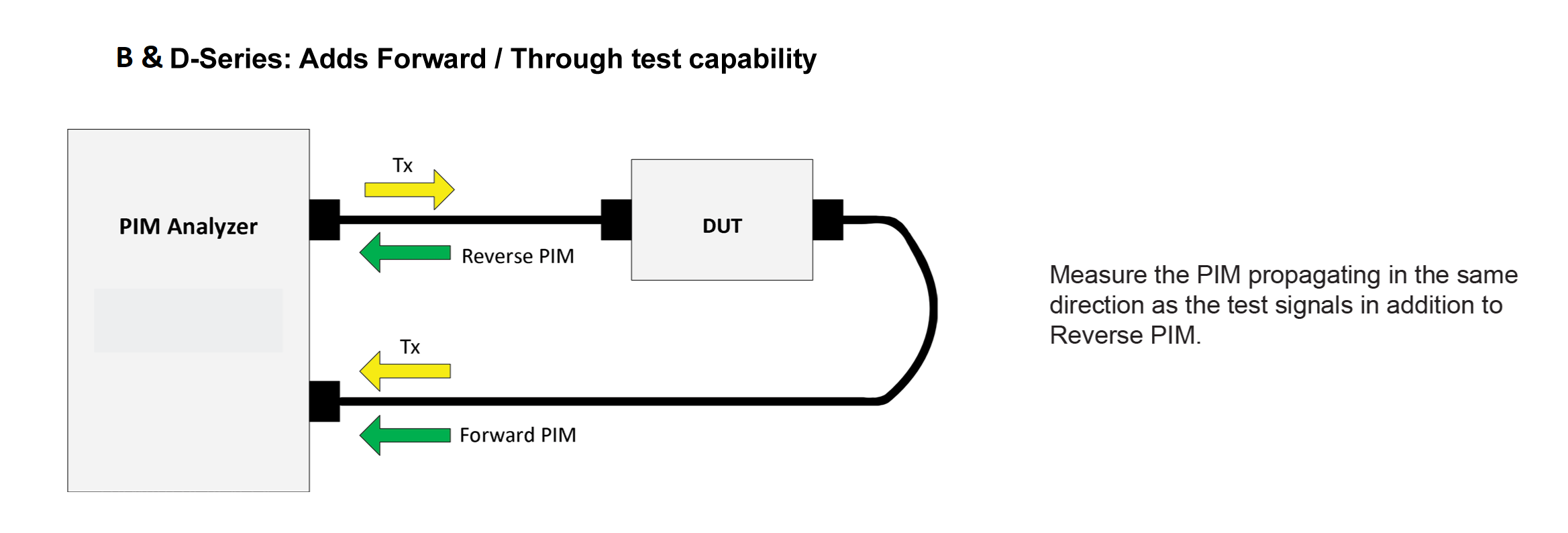

The iBA Series 40W PIM Analyzer is a complete bench top and rack mounting PIM test solution used with a system controller and intuitive user software. This economical solution comes in model variations that cover all major commercial wireless bands. The iBA base model (C-Series) measures Reverse/reflected IM only. The D-Series adds a second test port to support a Reverse IM measurement on either port and a forward IM measurement port-to-port. Both the C & D Series can be fitted with optional internal DC/AISG Bias Tee.

FEATURES

  • Fully integrated system in compact size
  • Fully configurable frequencies, power and IM products
  • USB control interface
  • Frequency sweep and time trace modes
  • Range to Fault (RTF) optional accessory, allows users to measure distance to Return Loss and PIM Fault
  • Optional internal DC / AISG Bias-Tee
  • +46dBm Ouptut Power (Max)
  • Compatible with ACE calibration tool

technical specifications
system
Measurement method C-Series: Reverse (Reflected) PIM | D-Series: Port 1 Reverse; Port 2 Reverse; Port-to-Port Forward PIM
Residual PIM < -125dBm (x 2 @ +43dBm)
IM order 3rd, 5th and 7th Order
User interface ports 1 x USB Type B, 1 x USB Type A, 1x Monitor Port (N Female).
Bias-Tee Option: 1 x AISG / DC on 8 Pin DIN Female
Test ports C-Series: 1 x RF Output (7-16 DIN Female); D-Series: 2 x RF Output (7-16 DIN Female)
transmitter
Transmit frequencies Refer to iBA series 40W model table
Frequency increment 100kHz
Frequency accuracy ± 5ppm maximum, aging ± 1ppm maximum after first year
Power per tone (adjustable) +30 to +46dBm | 1W to 40W
Power accuracy (per tone) ± 0.35dB
receiver
Receive band (100kHz steps) Refer to iBA Series Model Table
Measurement noise floor < -130 dBm (-135 dBm, typical)
Measurement range -55dBm to -130dBm
aisg/dc option
Factory Fitted AISG Modem and Bias Tee AISG ON/OFF keying AND/OR +28V DC available on the RF Test port (on Port 1 for the D Series iBA)
AISG baseband (RS485) AND/OR +28V DC is available on the 8 pin DIN Female connector
AISG/DC Specifications: (DC specs applies to both ports) Output Voltage: +28V max
Current: 2.5A max
Frequency: 2.076 to 2.276 MHz
Return loss: >10dB
Ordering Information Add Suffix -1 to model number
electrical
Mains power 115 - 230V, 50 - 60Hz AC
Power consumption 700W (Maximum)
mechanical
Dimensions H x D x W C series- 264.2 x 508 x 482.6mm | 10.4 x 20 x 19in
D series- 355.3 x 508 x 482.6mm | 14 x 20 x 19in
Weight C series- 22.7kg | 50lbs
D series- 31.3kg | 69lbs
Cooling Forced air (100mm gap to be maintained at the rear when rack mounted, 1U spacing recommended between units)
environmental
Temperature range +10ºC to +40ºC | +50°F to +104°F (operating)
Ingress protection Indoor use (or similar protected outdoor environment)
Operational humidity 5% to 90% non-condensing
Storage temperature range -20°C to +60°C | -4°F to +140°F
iba c-series models
C-SERIES(Single port) Reverse IM
MODEL TX RANGE RX RANGE (PIM) IM ORDER RTF MODULE
iBA-0600C TX1 617-630MHz
TX2 640-652MHz
663-698MHz IM3, IM5, IM7 RTF-1000
iBA-0700LC TX1 728-731.5MHz
TX2 741-757MHz
698-716MHz IM3, IM5, IM7 RTF-1000
iBA-0700HC TX1 728-731.5MHz
TX2 741-757MHz
776-787MHz IM3, IM5, IM7 RTF-1000
iBA-0703C TX1 758-768MHz
TX2 778-803MHz
703-748MHZ IM3, IM5, IM7 RTF-1000
iBA-0707C TX1 728-731.5MHz
TX2 741-764MHz
Rx Low 698-716MHz
Rx High 776-802MHz
IM3, IM5, IM7 RTF-1000
iBA-0850C TX1 869MHz
TX2 879-894MHz
824-849MHz IM3, IM5, IM7 RTF-1000
iBA-0901C TX1 925-935MHz
TX2 945-960MHz
880-915MHz IM3, IM5, IM7 RTF-1000
iBA-1800C TX1 1805-1812MHz
TX2 1825-1880MHz
1710-1785MHz IM3, IM5, IM7 RTF-2000
iBA-1921C PCS
TX1 1930-1950MHz
TX2 1970-1990MHz
AWS
TX1 1930-1950MHz
TX2 2110-2155MHz
PCS
1850-1910MHz

AWS
1710-1755MHz
IM3. IM5, IM7 RTF-2000
iBA-2101C TX1 2110-2130MHz
TX2 2150-2170MHz
1920-2080MHz IM3. IM5, IM7 RTF-2000
iBA-2600C TX1 2620-2630MHz
TX2 2650-2690MHz
2500-2570MHz IM3. IM5, IM7 RTF-2600
iba d-series models
D-SERIES(Dual Port) Forward and Reverse IM on ports 1 and 2
MODEL TX RANGE RX RANGE (PIM) IM ORDER RTF MODULE
iBA-0600D TX1 617-630MHz
TX2 640-652MHz
663-698MHz IM3, IM5, IM7 RTF-1000
iBA-0700LD TX1 728-731.5MHz
TX2 741-757MHz
698-716MHz IM3, IM5, IM7 RTF-1000
iBA-0700HD TX1 728-731.5MHz
TX2 741-757MHz
776-787MHz IM3, IM5, IM7 RTF-1000
iBA-0703D TX1 758-768MHz
TX2 778-803MHz
703-748MHz IM3, IM5, IM7 RTF-1000
iBA-0707D TX1 728-731.5MHz
TX2 741-764MHz
Rx Low 698-716MHz
Rx High 776-802MHz
IM3, IM5, IM7 RTF-1000
iBA-0850D TX1 869MHz
TX2 879-894MHz
824-849MHz IM3, IM5, IM7 RTF-1000
iBA-0901D TX1 925-935MHz
TX2 945-960MHz
880-915MHz IM3, IM5, IM7 RTF-1000
iBA-1800D TX1 1805-1812MHz
TX2 1825-1880MHz
1710-1785MHz IM3, IM5, IM7 RTF-2000
iBA-1921D PCS
TX1 1930-1950MHz
TX2 1970-1990MHz
AWS
TX1 1930-1950MHz
TX2 2110-2155MHz
PCS
1850-1910MHz

AWS
1710-1755MHz
IM3. IM5, IM7 RTF-2000
iBA-2101D TX1 2110-2130MHz
TX2 2150-2170MHz
1920-2080MHz IM3. IM5, IM7 RTF-2000
iBA-2600D TX1 2620-2630MHz
TX2 2650-2690MHz
2500-2570MHz IM3. IM5, IM7 RTF-2600
accessories
ordering information

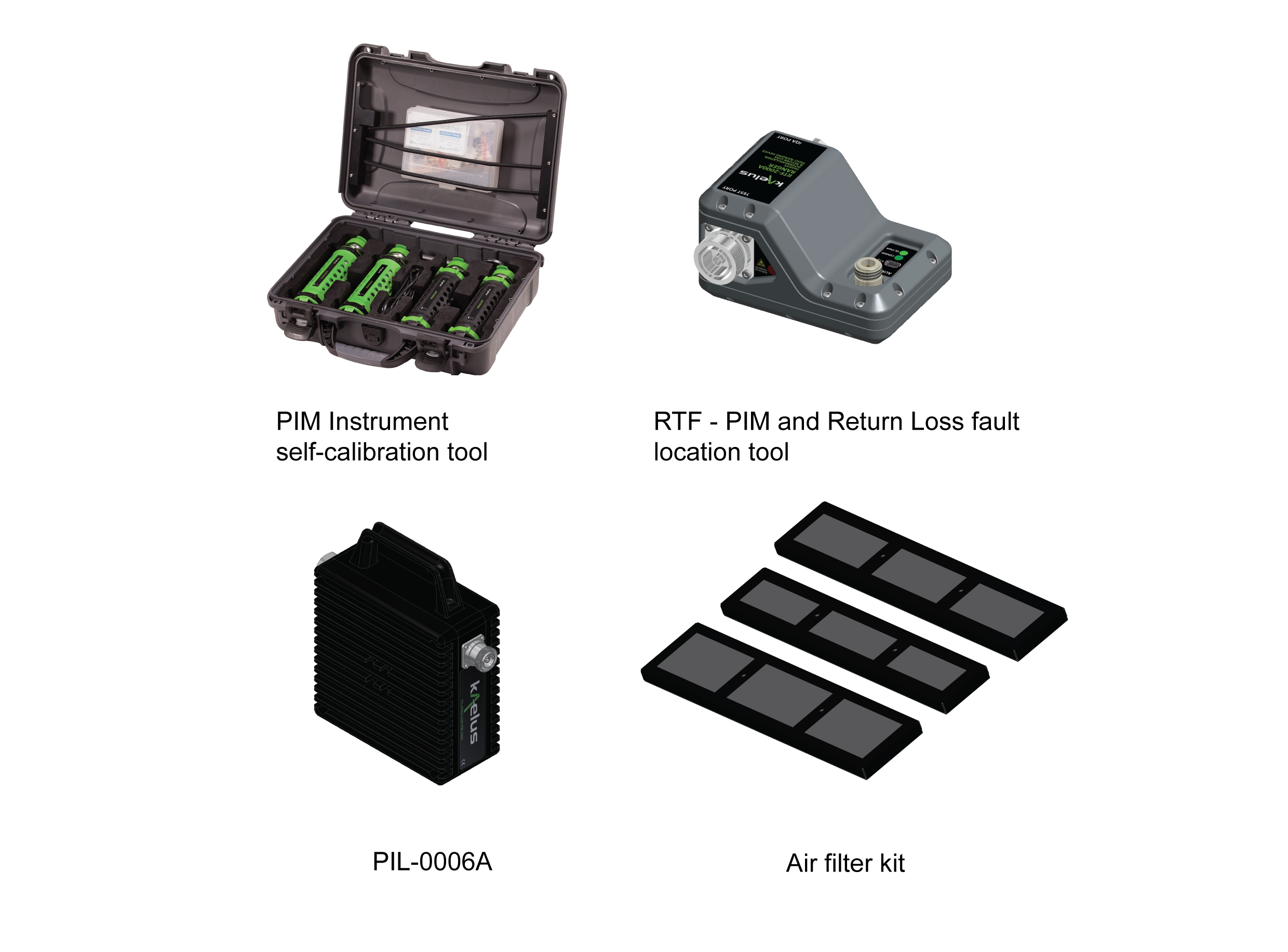

ACE-1000A
Highly recommended accessory
PIM Instrument self-calibration tool
RTF Range To Fault
PIM and Return Loss fault location tool
PIL-0006A Low Passive Intermodulation Termination
610MHz - 2700MHz
R92-0725 Air filter kit - iBA C Series
R92-0726 Air filter kit - iBA D Series
